Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10077896 Feed Tube Assembly Special Order $ 72.83

2 WPW10349488 Screw   (Replaces: 8533889) Special Order $ 8.97

3 8193983 Sprayarm, 3rd Level   (Replaces: 8557720) In-Stock Immediately $ 25.27

5 W10238391 Mount Appelez-nous -
6 W10234639 Manifold Appelez-nous -
7 W10238394 Hanger Appelez-nous -
8 WP8268433 Seal, Sprayarm   (Replaces: 8268433) In-Stock Immediately $ 11.77

9 W10077923 Nozzle-feed Special Order $ 33.02

10 W10234642 Sprayarm Special Order $ 82.13


    View Diagram in Separate Window     Print Icon   Print Part List

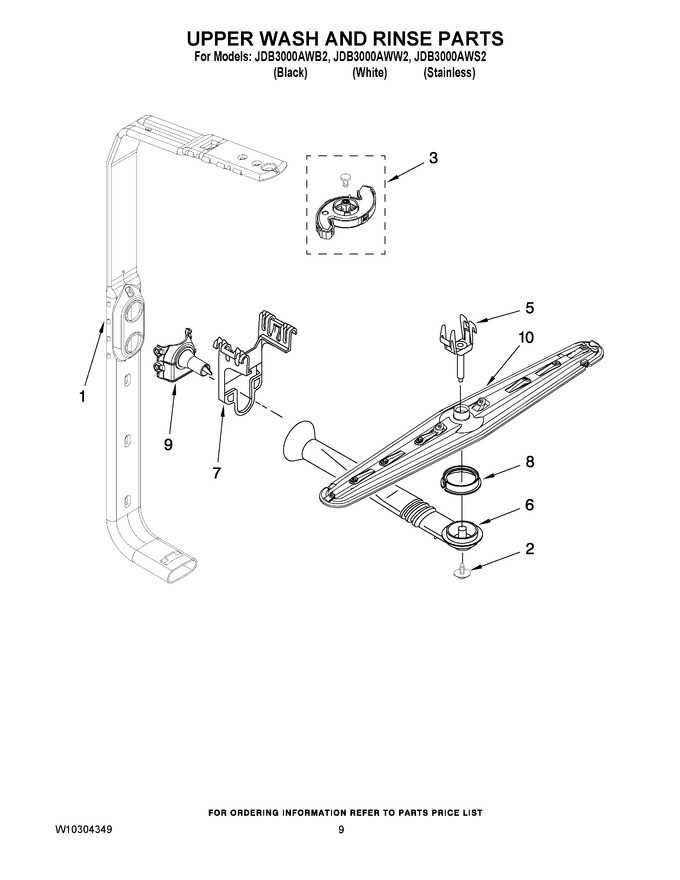

Diagram for JDB3000AWB2
