Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10208699 Guide, Use & Care Spanish Appelez-nous -
1 W10142800 Tech Sheet Appelez-nous -
1 W10208727 Instructions, Installation Appelez-nous -
1 W10208728 Energy Guide Appelez-nous -
1 W10208698 Guide, Use & Care English/french Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 8268983 Stiffener, Door Special Order $ 38.77

4 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

5 W11763736 Access Panel (black)   (Replaces: 8573255) In-Stock Immediately $ 42.25

5 WPW10441007 Access Panel (white)   (Replaces: 8573256) Special Order $ 170.94

6 W10234553 Panel, Full Front (includes Items 4, 13 & 14) (black) Appelez-nous -
6 W10234555 Panel, Full Front (includes Items 4, 13 & 14) (stainless) Special Order $ 108.21

6 W10234554 Panel, Full Front (includes Items 4, 13 & 14) (white) Appelez-nous -
7 W10831329 Insulation, Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

8 W10799406 Toe Panel (includes Items 7 & 9) (white)   (Replaces: W10205337) Special Order $ 170.13

8 W10871196 Toe Panel (includes Items 7 & 9) (black)   (Replaces: W10205336) Special Order $ 174.04

9 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 11.21

10 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

10 3400865 Screw (biscuit) Special Order $ 14.07

10 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

12 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

13 WPW10214168 Nameplate (stainless)   (Replaces: W10214168) Special Order $ 85.95

13 WPW10214168 Nameplate (black)   (Replaces: W10190724) Special Order $ 85.95

13 W10190723 Nameplate (white) Special Order $ 111.95


    View Diagram in Separate Window     Print Icon   Print Part List

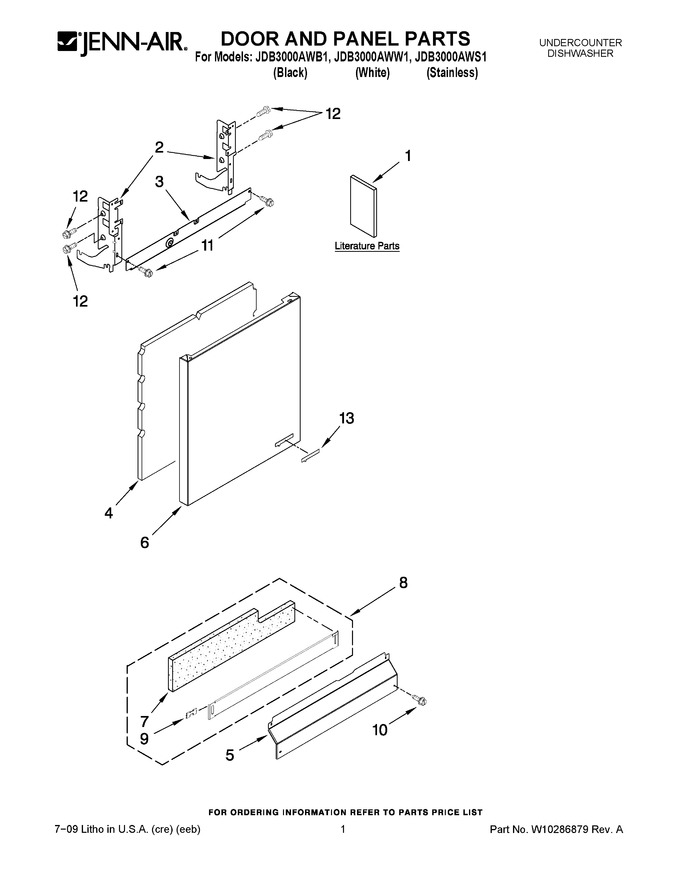

Diagram for JDB3000AWS1
