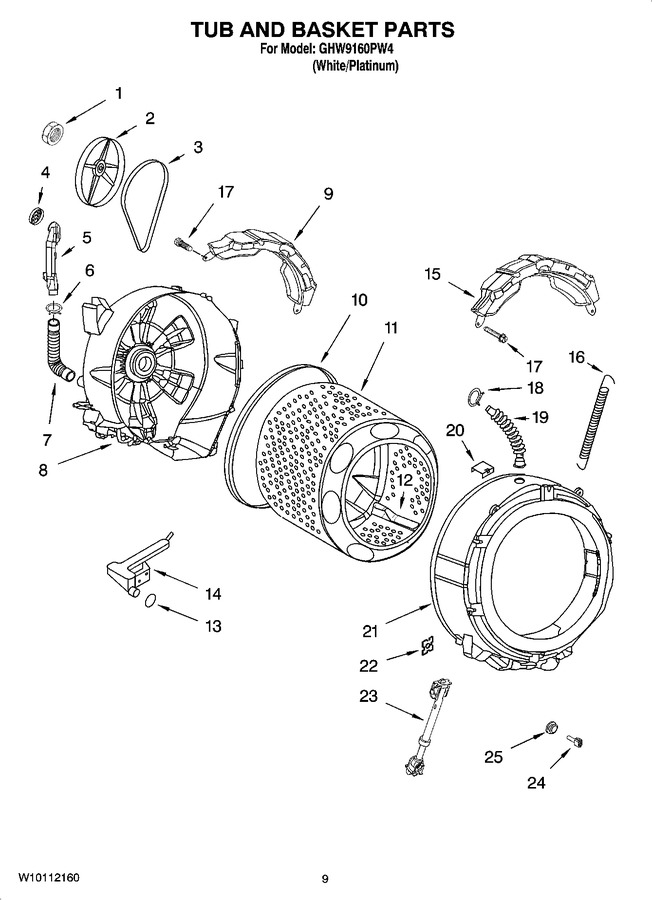

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8182132) |
|
Immediately | $ 83.07 | ||||
| 2 | WP8182650 | Pulley (Replaces: 8182650) |
|
Immediately | $ 197.07 | ||||
| 3 | WPW10388414 | Belt (Replaces: 8182633) |
|
Immediately | $ 53.86 | ||||
| 4 | 8181745 | Grid, Ventilation |
|
$ 15.11 | |||||
| 5 | 8181744 | Pipe, Ventilation |
|
$ 82.50 | |||||
| 6 | 8540010 | Clamp (Replaces: 8181746) |
|
$ 11.74 | |||||
| 7 | WP8181743 | Hose, Exhaust (Replaces: 8181743) |
|
$ 113.79 | |||||
| 8 | W10772617 | Tub, Rear (Replaces: 8181912) |
|
$ 702.85 | |||||
| 9 | 8181913 | Counterweight, Rear |
|
- | |||||
| 10 | W10772613 | Gasket, Tub (Replaces: 8181673) |
|
$ 435.23 | |||||
| 11 | 8182232 | Basket |
|
- | |||||
| 12 | WP8182233 | Baffle, Tub (Replaces: 8182233) |
|
Immediately | $ 69.18 | ||||
| 13 | WPW10250553 | O-ring (Replaces: 8181748) |
|
$ 7.55 | |||||
| 14 | 8181731 | Airtrap |
|
$ 29.07 | |||||
| 15 | WPW10008880 | Counterweight, Front (Replaces: 8181645) |
|
$ 184.72 | |||||
| 16 | W10135004 | Spring, Suspension (Replaces: 8182814) |
|
Immediately | $ 87.78 | ||||
| 17 | 8181647 | Bolt |
|
- | |||||
| 18 | WP3367052 | Clamp (Replaces: 8181742) |
|
$ 9.10 | |||||
| 19 | WP8181794 | Hose, Tub To Dispenser (Replaces: 8181794) |
|
$ 40.18 | |||||
| 20 | WP8540092 | Clamp (Replaces: 8181667) |
|
$ 7.97 | |||||
| 21 | W10772612 | Tub, Front (Replaces: 8181825) |
|
$ 560.68 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8182512) |
|
Immediately | $ 7.30 | ||||
| 23 | W10822553 | Shock Absorber (Replaces: 8182812) |
|
Immediately | $ 83.35 | ||||
| 24 | WPW10467289 | Ntc (Replaces: 8181705) |
|
Immediately | $ 47.80 | ||||
| 25 | 8181829 | Seal, Rubber |
|
- | |||||
| 25 | WPY706189 | Screw, Baffle (Replaces: 8182126) |
|
Immediately | $ 7.55 |
