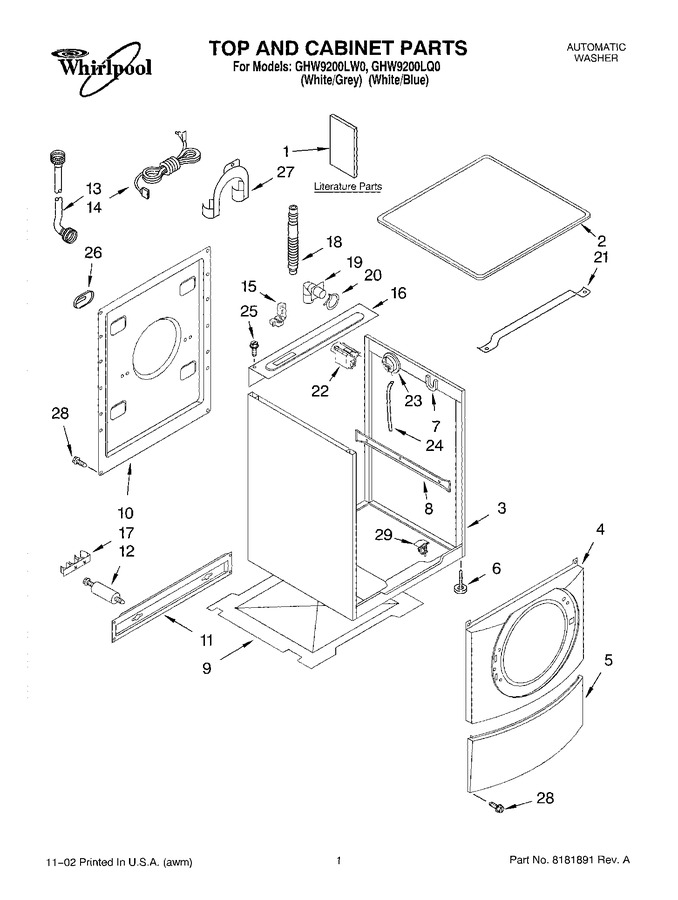

01 - Top And Cabinet, Literature
02 - Section
03 - Door And Panel
04 - Dispenser
05 - Tub And Basket
06 - Pump And Motor
07 - Pedestal
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8181919 | Literature Parts (quick Start Guide) |
|
- | |||||
| 1 | LIT8181921 | Literature Parts (dispenser Guide) |
|
- | |||||
| 1 | LIT8181894 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8181790 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8181895 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | LIT8181893 | Literature Parts (video-instruction) |
|
- | |||||
| 2 | 8181641 | Top |
|
- | |||||
| 3 | 8181630 | Cabinet |
|
- | |||||
| 4 | 8181838 | Panel, Front |
|
- | |||||
| 5 | 8181643 | Toe Panel |
|
- | |||||
| 6 | 8181636 | Foot, Leveling |
|
$ 9.57 | |||||
| 7 | WP8181763 | Bracket, Spring (Replaces: 8181763) |
|
$ 79.99 | |||||
| 8 | 8181634 | Brace, Side Panel |
|
- | |||||
| 9 | 8181635 | Pan, Bottom |
|
$ 66.73 | |||||
| 10 | 8181638 | Panel, Rear |
|
- | |||||
| 11 | WPW10003040 | Brace, Transport (Replaces: 8181633) |
|
$ 96.77 | |||||
| 12 | W10289554A | Bolt, Shipping (upper) (Replaces: 8181764) |
|
$ 64.96 | |||||
| 12 | W10289554A | Bolt, Shipping (lower) (Replaces: 8181765) |
|
$ 64.96 | |||||
| 13 | WP76314 | Hose, Water Inlet (red Coupler) (Replaces: 8181707) |
|
$ 43.10 | |||||
| 13 | WP76314 | Hose, Water Inlet (blue Coupler) (Replaces: 8181706) |
|
$ 43.10 | |||||
| 14 | WP8183009 | Cord, Power (Replaces: 8181689) |
|
$ 147.66 | |||||
| 15 | 8182635 | Strain Relief (Replaces: 8181690) |
|
$ 16.72 | |||||
| 16 | 8181631 | Brace, Rear |
|
- | |||||
| 17 | 8181749 | Clamp, Tube Transportation |
|
- | |||||
| 18 | WP8181737 | Hose, Outlet (Replaces: 8181737) |
|
Immediately | $ 62.50 | ||||
| 19 | W11757170 | Connector, Hose Outlet (Replaces: 8181738) |
|
Immediately | $ 6.39 | ||||
| 20 | WP3367052 | Clamp, Hose (Replaces: 8181752) |
|
$ 8.32 | |||||
| 21 | 8181632 | Brace, Top |
|
- | |||||
| 22 | WPW10367632 | Filter, Interference (Replaces: 8181683) |
|
$ 122.22 | |||||
| 23 | WPW10514214 | Switch, Pressure (Replaces: 8181695) |
|
Immediately | $ 146.04 | ||||
| 24 | WPW10004260 | Hose, Pressure Switch (Replaces: 8181739) |
|
Immediately | $ 7.00 | ||||
| 25 | 8181691 | Screw |
|
- | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8181767) |
|
$ 6.95 | |||||
| 27 | WPW10280024 | Storage, Hose (Replaces: 8181768) |
|
$ 79.53 | |||||
| 28 | WP488729 | Screw (Replaces: 8181828) |
|
Immediately | $ 7.79 | ||||
| 29 | WPW10085220 | Microswitch (2) (Replaces: 8181930) |
|
$ 33.25 |
