SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts

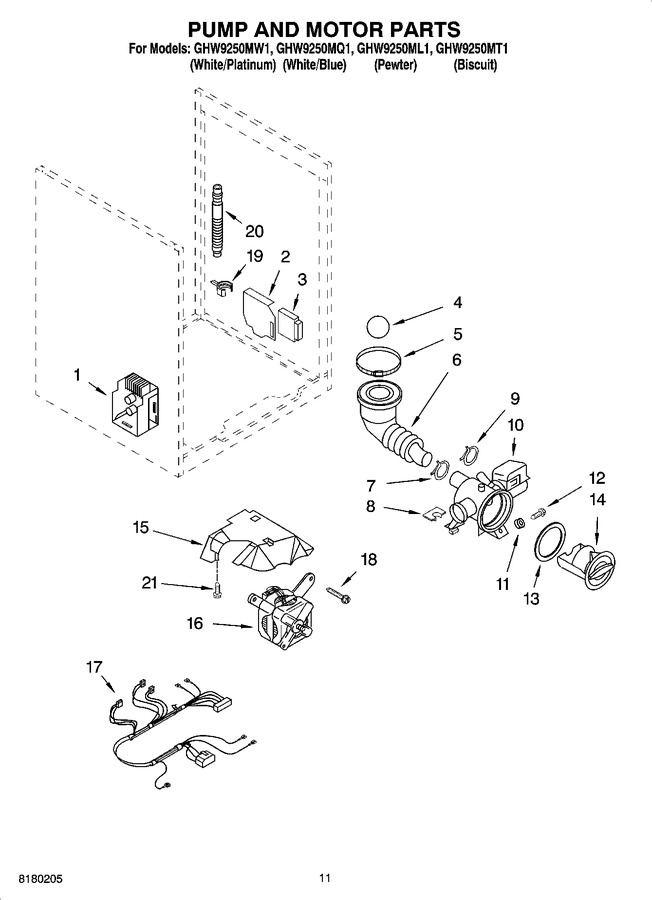

06 - Pump And Motor Parts Optional Parts (not Included)


07 - Pedestal Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10756692		Control Unit (motor)   (Replaces: 8181693)			Immediately	$ 407.85
2	8181698		Bracket, Relay		Appelez-nous	-
3	8181697		Relay				$ 22.58
4	W10121657		Ball   (Replaces: 8181733)				$ 20.03
5	WP696392		Clamp   (Replaces: 8181734)				$ 8.12
6	WPW10467168		Hose, Tub To Pump   (Replaces: 8181732)			Immediately	$ 38.31
7	WP285655		Clamp   (Replaces: 8181753)			Immediately	$ 8.39
8	8181786		Damper, Rubber (rear)		Appelez-nous	-
9	WP3367052		Clamp   (Replaces: 8181752)				$ 8.32
10	280187		Pump (complete)   (Replaces: 8181684)			Immediately	$ 233.93
11	8181787		Damper, Rubber (front)		Appelez-nous	-
12	8181780		Screw				$ 5.27
13	8181736		Seal, Filter Cap				$ 36.51
14	8181735		Cap, Filter		Appelez-nous	-
15	8181766		Cover, Motor		Appelez-nous	-
16	8181682		Motor		Appelez-nous	-
17	8181782		Harness, Motor		Appelez-nous	-
18	8181761		Bolt, Motor		Appelez-nous	-
19	8182209		Retainer, Drain Hose   (Replaces: 8181755)				$ 20.57
20	WPW10003250		Drain Hose (inner)   (Replaces: 8181740)			Immediately	$ 34.59
21	285863		Drain Extension			Immediately	$ 32.43
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
21	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
21	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
21	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
21	N/A		Accessory Parts		Appelez-nous	-
21	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
21	8181757		Screw		Appelez-nous	-
21	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 28.20
21	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45

    View Diagram in Separate Window       Print Part List
