Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10315891 Lower Rack   (Replaces: W10056350) Special Order $ 228.43

2 6-918871 Cover Special Order $ 25.70

3 WPW10082868 Wheel & Transport Assembly   (Replaces: W10238410) In-Stock Immediately $ 49.90

4 W10056323 Basket, Silverware Special Order $ 90.90

5 WPW10238412 Pivot, Tine Row   (Replaces: W10238412) Special Order $ 14.99

6 WPW10056351 Tinerow   (Replaces: W10056351) Special Order $ 87.03

7 WPW10238411 Retainer, Tinerow   (Replaces: W10238411) Special Order $ 8.17


    View Diagram in Separate Window     Print Icon   Print Part List

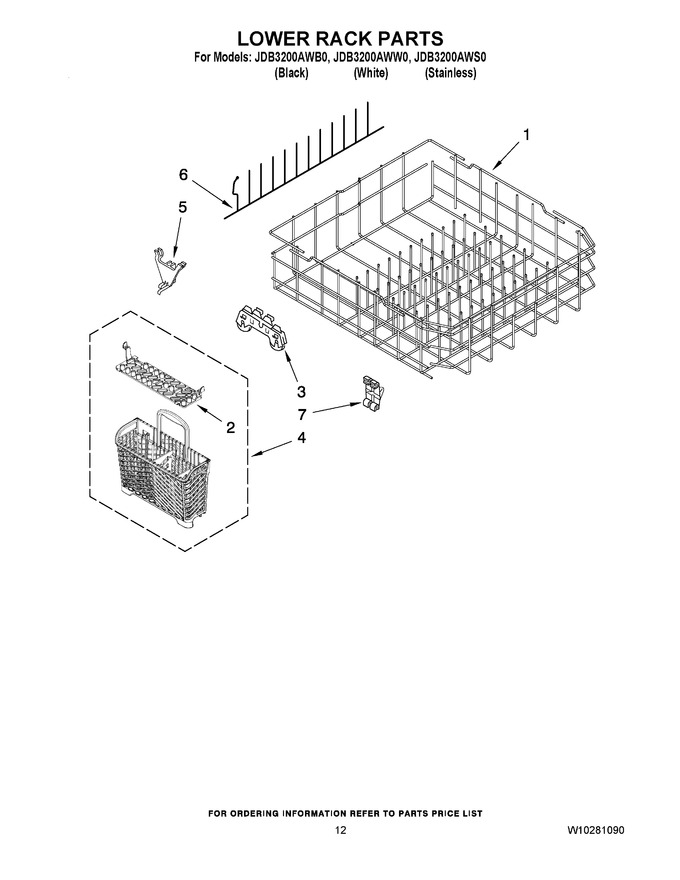

Diagram for JDB3200AWS0
