Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10275465 Console Assembly (includes Insert) (black(awp,aws)) Appelez-nous -
1 W10208755 Console Assembly (includes Insert) (black(awx)) Appelez-nous -
2 W10102497 Switch, Door Appelez-nous -
3 WPW10285178 Control, Elec.   (Replaces: W10285178) Special Order $ 263.40

4 W10258275 Bi-metal   (Replaces: W10344801) In-Stock Immediately $ 41.71

5 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 8.20

6 WPW10404412 Latch, Assembly   (Replaces: W10404412) In-Stock Immediately $ 85.50


    View Diagram in Separate Window     Print Icon   Print Part List

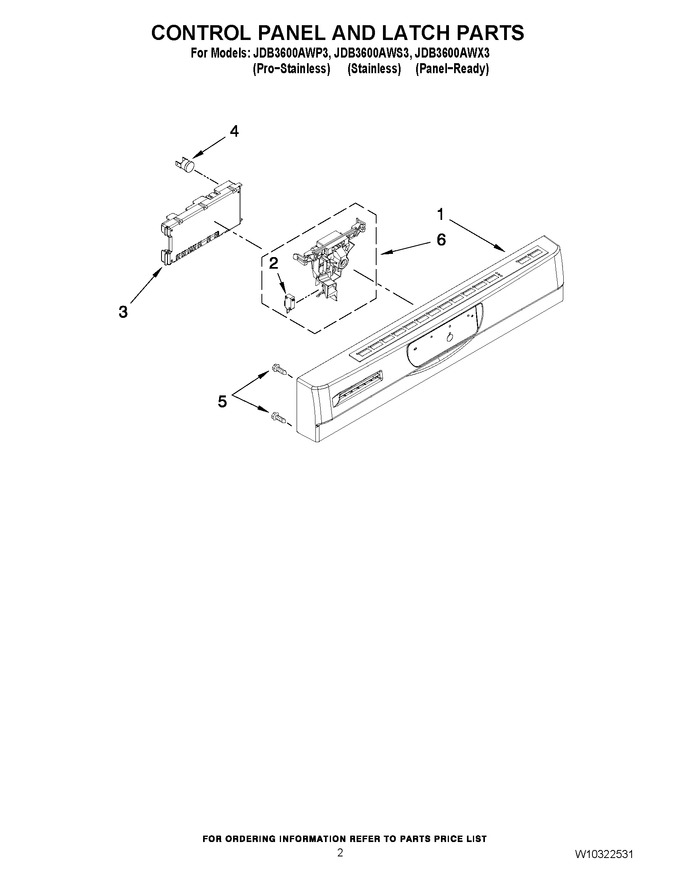

Diagram for JDB3600AWP3
