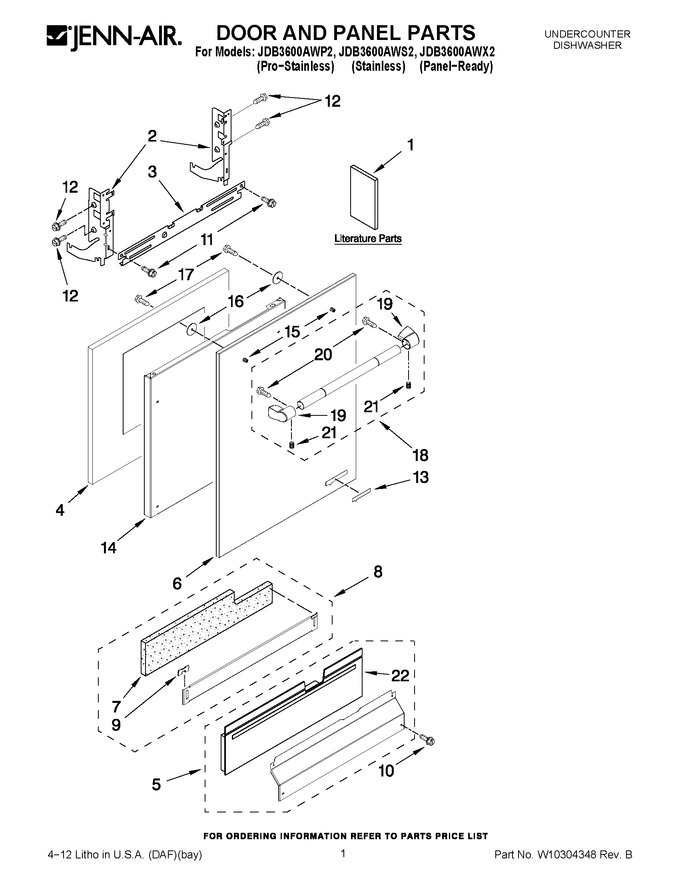

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208701 | Use & Care Guide (spanish) |
|
- | |||||
| 1 | W10208727 | Instructions, Installation |
|
- | |||||
| 1 | W10247484 | Energy Guide |
|
- | |||||
| 1 | W10158347 | Tech Sheet (french) |
|
- | |||||
| 1 | W10142826 | Tech Sheet (english) |
|
- | |||||
| 1 | W10208700 | Use & Care Guide (english/french) |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10234565 | Insulation, Door |
|
$ 69.57 | |||||
| 5 | W10287593 | Access Panel |
|
$ 113.70 | |||||
| 6 | W10234559 | Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (pro-stainless) |
|
$ 309.49 | |||||
| 6 | W10234556 | Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (black) |
|
- | |||||
| 7 | W10831329 | Insulation, Toe Panel (Replaces: W10056273) |
|
Immediately | $ 43.30 | ||||
| 8 | W10871196 | Toe Panel (includes Items 7 & 9) (Replaces: 8558252) |
|
$ 174.04 | |||||
| 9 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 | |||||
| 10 | WP302868 | Screw (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W11636815 | Nameplate (Replaces: W10114211) |
|
$ 45.35 | |||||
| 14 | W11113792 | Panel, Custom 6`` (Replaces: 8535133) |
|
Immediately | $ 373.42 | ||||
| 15 | WP8564951 | Stud (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 16 | W10142904 | Plate, Backing |
|
$ 50.57 | |||||
| 17 | W10123421 | Screw |
|
$ 12.83 | |||||
| 18 | W10194840 | Handle (pro-stainless) |
|
$ 119.05 | |||||
| 18 | W10208769A | Handle (stainless (includes 19, 20 & 21)) (Replaces: W10056289) |
|
$ 127.85 | |||||
| 19 | W10194837 | End Cap (r.hand) |
|
$ 181.74 | |||||
| 19 | W10194838 | End Cap (l.hand) |
|
$ 181.74 | |||||
| 20 | W10276608 | Screw |
|
$ 46.73 | |||||
| 21 | WP8534008 | Set Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 22 | W10831329 | Pad, Barrier (Replaces: W10275525) |
|
Immediately | $ 43.30 |
