SELECT A DIAGRAM

01 - Cover

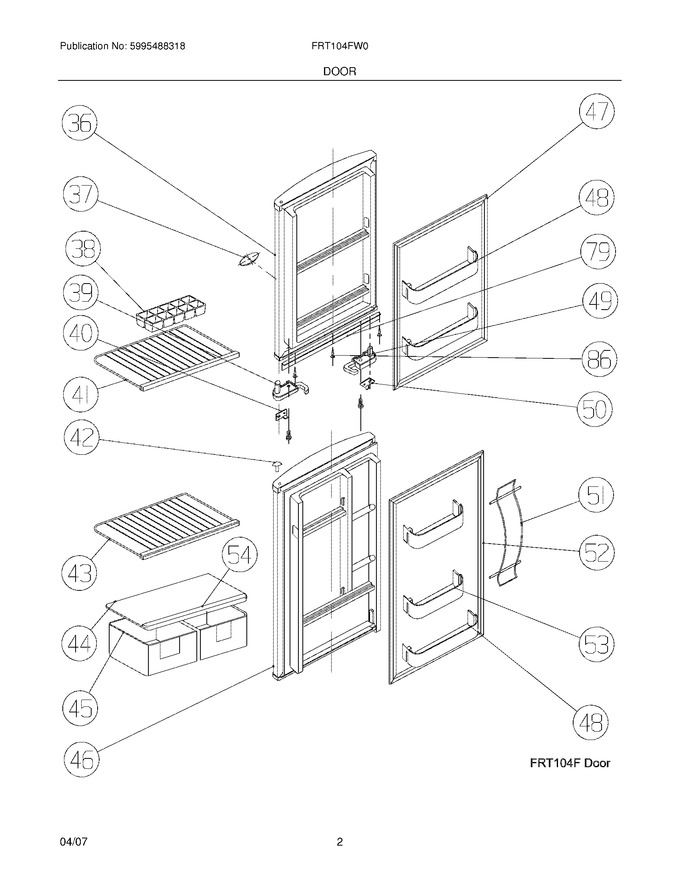

03 - Door


05 - Cabinet/controls


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	5304460878		Door-frzr,white ,exterior W/foam		Appelez-nous	-
37	5304460372		Label-nameplate		Appelez-nous	-
38	5304460373		Tray-ice		Appelez-nous	-
39	5304460374		Stop-door		Appelez-nous	-
40	5304460375		Keeper		Appelez-nous	-
41	5304460425		Shelf,freezer ,wire		Appelez-nous	-
42	5304460377		Button Plug,hinge Bearing		Appelez-nous	-
43	5304460426		Shelf,sliding ,wire		Appelez-nous	-
44	5304460427		Cover-crisper Pan		Appelez-nous	-
45	5304460428		Pan-crisper,(2)		Appelez-nous	-
46	5304461024		Door-refr,white ,exterior W/foam		Appelez-nous	-
47	5304460879		Panel-frzr Door,interior				$ 49.40
48	5304460382		Bin-door,psuedo				$ 47.83
49	5304460383		Door Stop		Appelez-nous	-
50	5304460384		Keeper		Appelez-nous	-
51	5304460388		Retainer-bottle				$ 45.76
52	5304461025		Panel-refr Door,white		Appelez-nous	-
53	5304460386		Bin-door,psuedo				$ 29.95
54	5304460429		Trim-crisper Cover		Appelez-nous	-
79	5304460400		Seal		Appelez-nous	-
86	5304460369		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
