SELECT A DIAGRAM

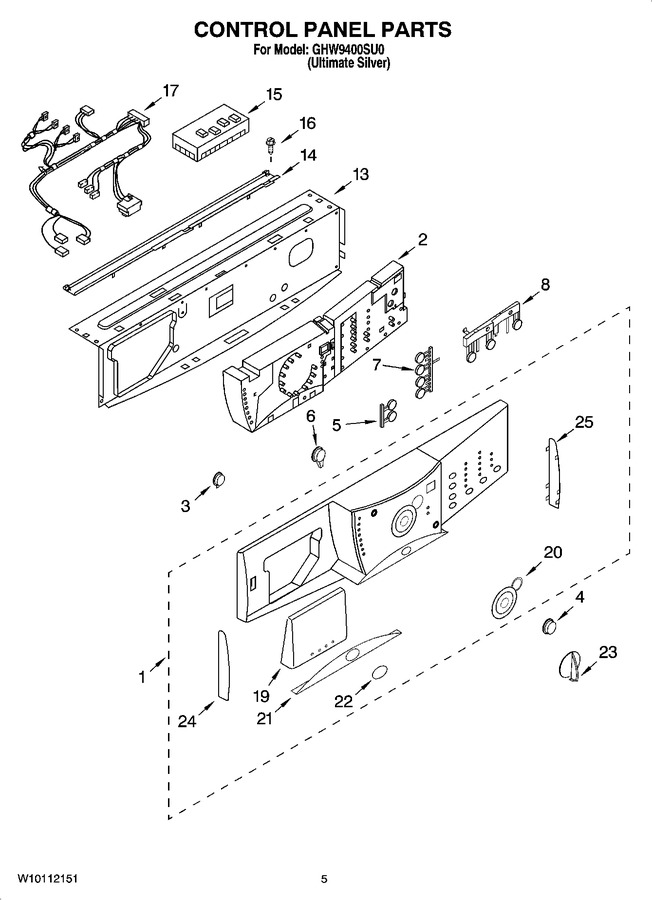

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183043		Panel, Control		Appelez-nous	-
2	8182717		User Interface				$ 262.26
3	8183037		Button, Power		Appelez-nous	-
4	8183038		Button, Start		Appelez-nous	-
5	8183040		Button Set, Soil Level		Appelez-nous	-
6	8183039		Button, Pause/cancel		Appelez-nous	-
7	8183041		Button Set, Options		Appelez-nous	-
8	8183042		Button Set, Spin/temperature		Appelez-nous	-
13	8182224		Brace, Front Top		Appelez-nous	-
14	8181640		Channel, Water		Appelez-nous	-
15	WP8182697		Microcomputer, Machine Control   (Replaces: 8182697)				$ 344.06
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
17	8182212		Harness, Wiring (main)				$ 139.63
19	8183044		Handle, Drawer		Appelez-nous	-
20	8181855		Bezel, Knob		Appelez-nous	-
21	8181857		Overlay, Door		Appelez-nous	-
22	8181858		Medallion		Appelez-nous	-
23	8183004		Knob, Control				$ 24.95
24	8183045		Endcap, Left		Appelez-nous	-
25	8183046		Endcap, Right		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
