SELECT A DIAGRAM

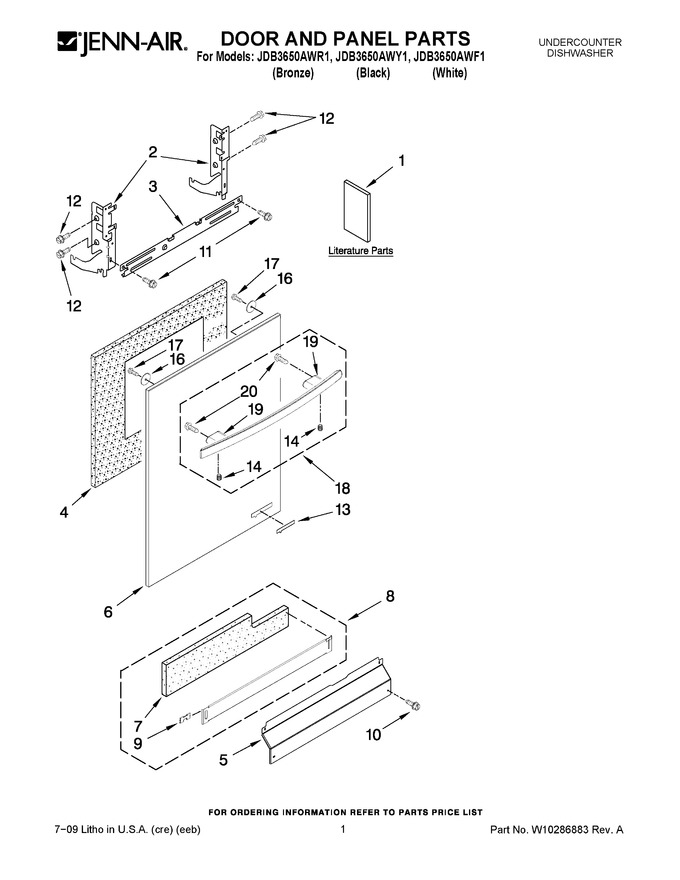

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10247484		Energy Guide		Appelez-nous	-
1	W10208727		Instructions, Installation		Appelez-nous	-
1	W10208700		Guide, Use & Care English/french		Appelez-nous	-
1	W10208701		Guide, Use & Care Spanish		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	W11763736		Access Panel (black)   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	W10056290		Panel, Full Front (includes Items 4, 13, 14, 16 & 17) (bronze)				$ 179.98
6	W10056411		Panel, Full Front (includes Items 4, 13, 14, 16 & 17) (stainless)				$ 201.35
6	W10056410		Panel, Full Front (includes Items 4, 13, 14, 16 & 17) (black)				$ 210.64
7	W10831329		Insulation, Toe Panel   (Replaces: W10056273)			Immediately	$ 43.30
8	W10831329		Toe Panel (includes Items 7 & 9)   (Replaces: W10056310)			Immediately	$ 43.30
9	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
10	WP302868		Screw,   (Replaces: 302868)			Immediately	$ 8.18
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	W10214169		Nameplate (bronze)				$ 53.42
13	W10190723		Nameplate (white)				$ 111.95
13	WPW10214168		Nameplate (black)   (Replaces: W10190724)				$ 85.95
14	W10276608		Set Screw				$ 46.73
16	W10142904		Plate, Backing				$ 50.57
17	W10123421		Screw				$ 12.83
18	W10056414		Handle (includes 14, 19 & 20) (black)		Appelez-nous	-
18	W10056382		Handle (includes 14, 19 & 20) (bronze)		Appelez-nous	-
18	W10234541A		Handle (includes 14, 19 & 20) (white)   (Replaces: W10056415)				$ 75.62
19	W10275187		Standoff (l.hand(white))		Appelez-nous	-
19	W10253599		Standoff (r.hand(black))		Appelez-nous	-
19	W10275186		Standoff (l.hand(black))		Appelez-nous	-
19	W10056318		Standoff (l.hand(bronze))		Appelez-nous	-
19	W10056380		Standoff (r.hand(bronze))		Appelez-nous	-
19	W10253600		Standoff (r.hand(white))		Appelez-nous	-
20	W10205188		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
