SELECT A DIAGRAM

01 - Cover Sheet

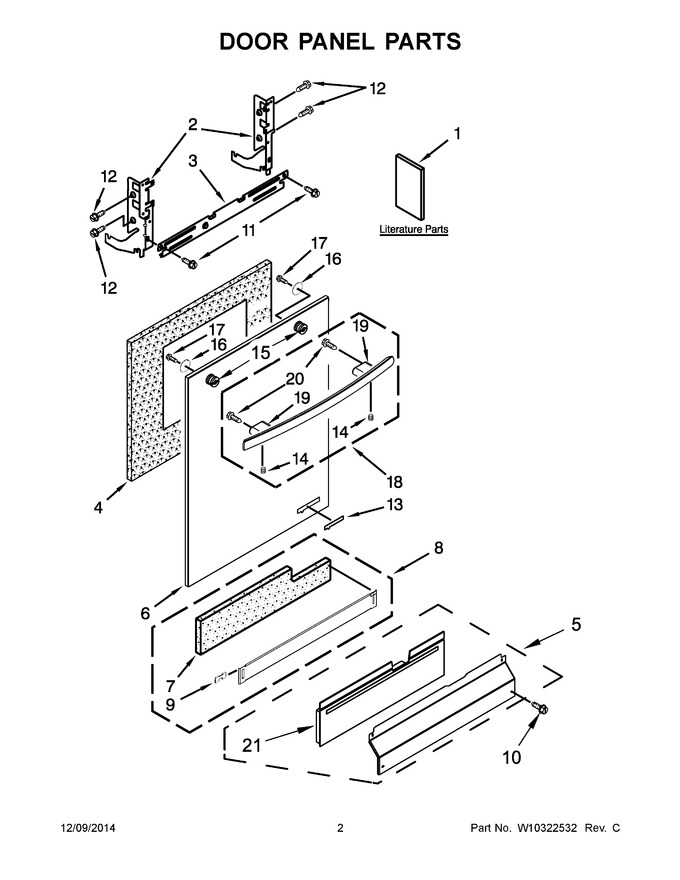

02 - Door Panel Parts


03 - Control Panel Parts


04 - Door And Latch Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10282554		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Brace, Door Cross				$ 38.77
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	W10287593		Access Panel (black)				$ 113.70
6	W10056290		Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (oiled Bronze)				$ 179.98
7	W10831329		Insulation, Toe Panel   (Replaces: W10385107)			Immediately	$ 43.30
8	W10871196		Toe Panel (black)   (Replaces: 8558252)				$ 174.04
9	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	W10214169		Nameplate (oiled Bronze)				$ 53.42
14	W10276608		Screw, Set				$ 46.73
15	WP8564951		Stud, Mounting (for Non-glass Front)   (Replaces: 8564951)			Immediately	$ 19.33
16	W10142904		Plate, Backing				$ 50.57
17	W10123421		Screw				$ 12.83
18	W10214169		Handle (includes 14, 19 & 20) (oiled Bronze)				$ 53.42
19	W10056380		Standoff Left Hand (oiled Bronze)		Appelez-nous	-
20	W10267047		Screw   (Replaces: W10201588)				$ 13.47
21	W10831329		Insulation, Three Layer   (Replaces: W10350437)			Immediately	$ 43.30
10A	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
13A	WPW10214168		Nameplate (black)   (Replaces: W10190724)				$ 85.95
13B	W10190723		Nameplate (white)				$ 111.95
15A	W10208695		Stud, Mounting (for Glass Front)				$ 22.56
18A	WPW10214168		Handle (includes 14, 19 & 20) (black)   (Replaces: W10190724)				$ 85.95
18B	W10190723		Handle (includes 14, 19 & 20) (white)				$ 111.95
19A	W10275186		Standoff Left Hand (black)		Appelez-nous	-
19B	W10275187		Standoff Left Hand (white)		Appelez-nous	-
19C	W10056381		Standoff Right Hand (oiled Bronze)		Appelez-nous	-
19D	W10253599		Standoff Right Hand (black)		Appelez-nous	-
19E	W10253600		Standoff Right Hand (white)		Appelez-nous	-
1A	W10300216		Use & Care Guide, English/french		Appelez-nous	-
1B	W10300217		Use & Care Guide, Spanish		Appelez-nous	-
1C	W10142826		Tech Sheet, English		Appelez-nous	-
1D	W10158347		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
5A	W11763739		Access Panel (white)   (Replaces: W10287592)				$ 42.65
6A	W10056410		Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (black)				$ 210.64
6B	W10056411		Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (white)				$ 201.35
8A	WPW10586591		Toe Panel (white)   (Replaces: 8558253)				$ 309.39

    View Diagram in Separate Window       Print Part List
