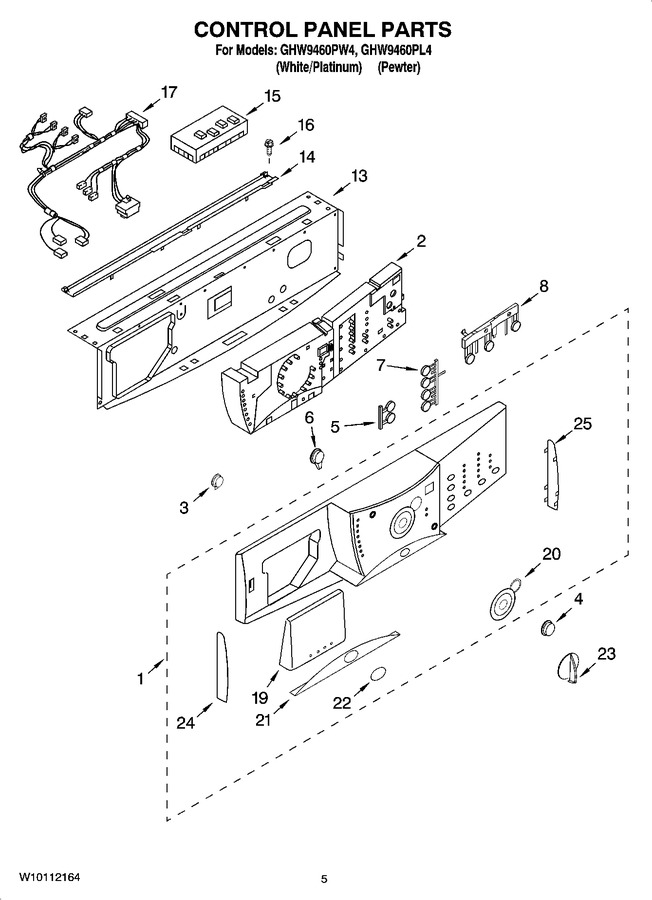

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182713		Panel, Control (pewter)		Appelez-nous	-
1	8182712		Panel, Control (platinum)		Appelez-nous	-
2	8182717		User Interface				$ 262.26
3	8181860		Button, Power				$ 31.30
4	WP8181861		Button, Start   (Replaces: 8181861)				$ 69.96
5	8182052		Button Set, Soil Level (pewter)				$ 6.09
5	8181863		Button Set, Soil Level (platinum)				$ 60.60
6	8182275		Button, Pause/cancel		Appelez-nous	-
7	8181864		Button Set, Options (platinum)		Appelez-nous	-
7	8182068		Button Set, Options (pewter)		Appelez-nous	-
8	8181865		Button Set, Spin/temperature (platinum)				$ 64.96
8	8182054		Button Set, Spin/temperature (pewter)		Appelez-nous	-
13	8182224		Brace, Front Top		Appelez-nous	-
14	8181640		Channel, Water		Appelez-nous	-
15	8182694		Microcomputer, Machine Control		Appelez-nous	-
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
17	8182212		Harness, Wiring (main)				$ 139.63
19	8181854		Handle, Drawer (platinum)		Appelez-nous	-
19	8182070		Handle, Drawer (pewter)		Appelez-nous	-
20	8181855		Bezel, Knob		Appelez-nous	-
21	8181857		Overlay, Door		Appelez-nous	-
22	8181858		Medallion		Appelez-nous	-
23	WP8181859		Knob, Control (platinum)   (Replaces: 8181859)			Immediately	$ 41.63
23	WP8182050		Knob, Control (pewter)   (Replaces: 8182050)			Immediately	$ 55.35
24	8181852		Endcap, Left (white)		Appelez-nous	-
24	8182064		Endcap, Left (pewter)		Appelez-nous	-
25	8182065		Endcap, Right (pewter)		Appelez-nous	-
25	8181853		Endcap, Right (white)		Appelez-nous	-
