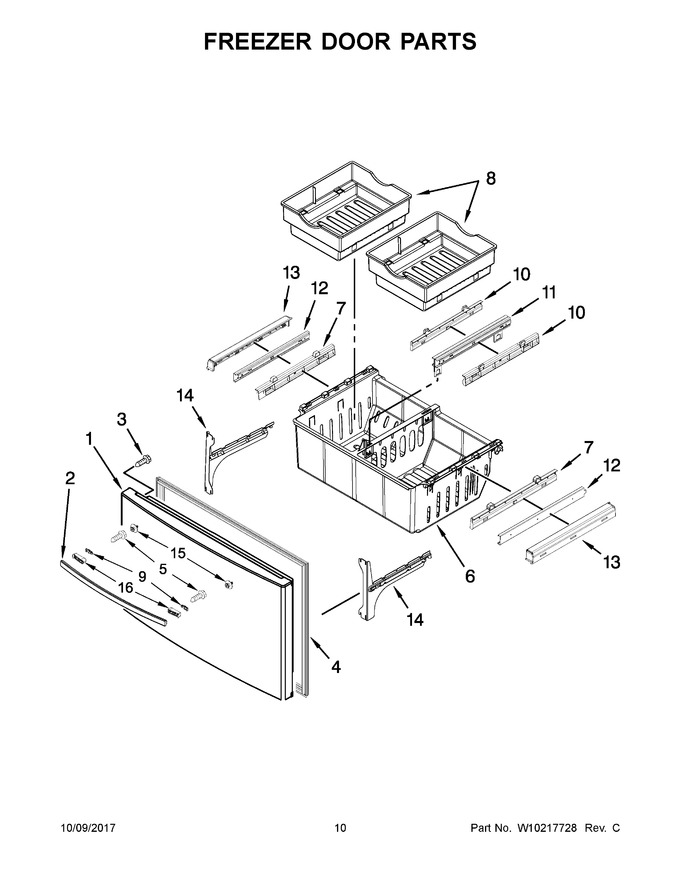

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977863WQ | Door, Freezer (white) (Replaces: W10174214) |
|
$ 889.81 | |||||
| 2 | W10159708 | Handle, Door (white) |
|
- | |||||
| 3 | 12991101 | Screw (Replaces: 67006408) |
|
$ 13.47 | |||||
| 4 | WPW10443321 | Gasket, Door (white) (Replaces: W10164043) |
|
$ 359.84 | |||||
| 5 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 6 | 67006981 | Bin, Lower |
|
$ 129.61 | |||||
| 7 | W10187469 | Adapter, Bin (outer) (Replaces: 67006979) |
|
$ 92.28 | |||||
| 8 | W10184227 | Bin, Upper |
|
Immediately | $ 122.12 | ||||
| 9 | 13067102SP | Clip, Handle |
|
$ 27.57 | |||||
| 10 | W10184223 | Adapter, Bin |
|
$ 97.14 | |||||
| 11 | W10235358 | Bracket/glide Assembly (Replaces: 67007119) |
|
$ 318.09 | |||||
| 12 | WPW10235368 | Glide, Upper (Replaces: 67007118) |
|
$ 335.82 | |||||
| 13 | W10826790 | Retainer, Glide (left Hand) (Replaces: 67007116) |
|
$ 62.48 | |||||
| 14 | WPW10330994 | Bracket, Door Slide (left Hand) (Replaces: W10119064) |
|
Immediately | $ 169.02 | ||||
| 15 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 11.91 | |||||
| 16 | W10157435 | Endcap, Handle (white) |
|
$ 30.29 | |||||
| 13A | W10826791 | Retainer, Glide (right Hand) (Replaces: 67007117) |
|
$ 62.48 | |||||
| 14A | WPW10330995 | Bracket, Door Slide (right Hand) (Replaces: W10119295) |
|
Immediately | $ 340.61 | ||||
| 16A | W10157436 | Endcap, Handle (black) |
|
- | |||||
| 16B | W10172586 | Endcap, Handle (stainless) |
|
- | |||||
| 1A | W10173929 | Door, Freezer (black) |
|
- | |||||
| 1B | 12977816LQ | Door, Freezer (satina) |
|
- | |||||
| 1C | 12977816SQ | Door, Freezer (stainless) |
|
$ 574.32 | |||||
| 2A | W10159709 | Handle, Door (black) |
|
$ 90.70 | |||||
| 2B | W10159711 | Handle, Door (stainless) |
|
- | |||||
| 4A | WPW10436253 | Gasket, Door (black) (Replaces: W10164044) |
|
$ 360.89 | |||||
| 4B | WPW10714545 | Gasket, Door (grey) (Replaces: W10164045) |
|
$ 323.60 |
