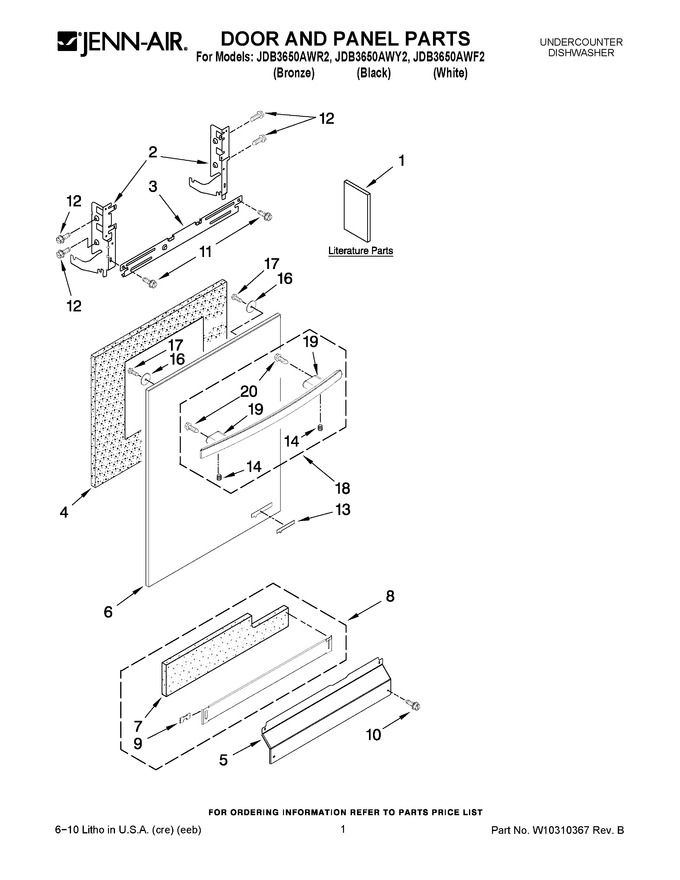

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208727 | Instructions, Installation |
|
- | |||||
| 1 | W10247484 | Energy Guide |
|
- | |||||
| 1 | W10208700 | Guide, Use & Care English/french |
|
- | |||||
| 1 | W10208701 | Guide, Use & Care Spanish |
|
- | |||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8573256) |
|
$ 170.94 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 6 | W10056290 | Panel, Full Front (includes Items 4, 13, 14, 16 & 17) (bronze) |
|
$ 179.98 | |||||
| 6 | W10056411 | Panel, Full Front (includes Items 4, 13, 14, 16 & 17) (stainless) |
|
$ 201.35 | |||||
| 6 | W10056410 | Panel, Full Front (includes Items 4, 13, 14, 16 & 17) (black) |
|
$ 210.64 | |||||
| 7 | W10831329 | Insulation, Toe Panel (Replaces: W10056273) |
|
Immediately | $ 43.30 | ||||
| 8 | W10831329 | Toe Panel (includes Items 7 & 9) (Replaces: W10056310) |
|
Immediately | $ 43.30 | ||||
| 9 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 | |||||
| 10 | WP302868 | Screw, (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W10190723 | Nameplate (white) |
|
$ 111.95 | |||||
| 13 | WPW10214168 | Nameplate (black) (Replaces: W10190724) |
|
$ 85.95 | |||||
| 13 | W10214169 | Nameplate (bronze) |
|
$ 53.42 | |||||
| 14 | W10276608 | Set Screw |
|
$ 46.73 | |||||
| 16 | W10142904 | Plate, Backing |
|
$ 50.57 | |||||
| 17 | W10123421 | Screw |
|
$ 12.83 | |||||
| 18 | W10234541A | Handle (includes 14, 19 & 20) (white) (Replaces: W10056415) |
|
$ 75.62 | |||||
| 18 | W10056414 | Handle (includes 14, 19 & 20) (black) |
|
- | |||||
| 18 | W10056382 | Handle (includes 14, 19 & 20) (bronze) |
|
- | |||||
| 19 | W10056381 | Standoff (l.hand(bronze)) |
|
- | |||||
| 19 | W10275186 | Standoff (l.hand(black)) |
|
- | |||||
| 19 | W10253600 | Standoff (r.hand(white)) |
|
- | |||||
| 19 | W10275187 | Standoff (l.hand(white)) |
|
- | |||||
| 19 | W10253599 | Standoff (r.hand(black)) |
|
- | |||||
| 19 | W10056380 | Standoff (r.hand(bronze)) |
|
- | |||||
| 20 | W10267047 | Screw (Replaces: W10201588) |
|
$ 13.47 |
