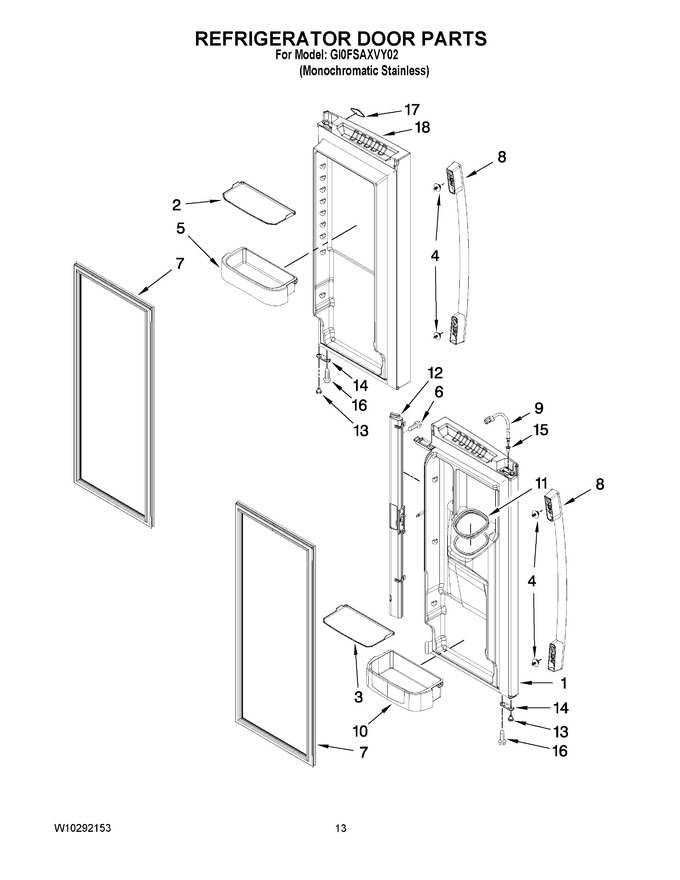

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978058SQ | Door, Left (stainless) |
|
- | |||||
| 2 | W10450032 | Gripper, Medium (Replaces: W10138063) |
|
$ 105.91 | |||||
| 3 | W10450033 | Gripper, Gallon (Replaces: W10138061) |
|
$ 87.28 | |||||
| 4 | WP12992902 | Screw, Handle (shoulder) (Replaces: 12992902) |
|
$ 11.91 | |||||
| 5 | WPW10451500 | Bin, Shelf (Replaces: W10134728) |
|
$ 107.67 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W10830055 | Gasket, Door (apollo Grey) (Replaces: W10163991) |
|
Immediately | $ 229.10 | ||||
| 8 | W11351147 | Handle, Door (stainless) (Replaces: W10223019) |
|
$ 198.22 | |||||
| 9 | 12962106 | Waterline, Door |
|
$ 133.09 | |||||
| 10 | WPW10451501 | Bucket, Gallon (Replaces: W10134727) |
|
Immediately | $ 109.44 | ||||
| 11 | WPW10287601 | Seal, Ice Chute (Replaces: 12999902) |
|
Immediately | $ 32.76 | ||||
| 12 | WP12722813AP | Mullion, Door (apollo Grey) (Replaces: 12722813APK) |
|
$ 340.89 | |||||
| 13 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 14 | W11703060 | Stop, Door (apollo Grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 15 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 16 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 17 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 18 | 12978062SQ | Door, Right (stainless) |
|
- |
