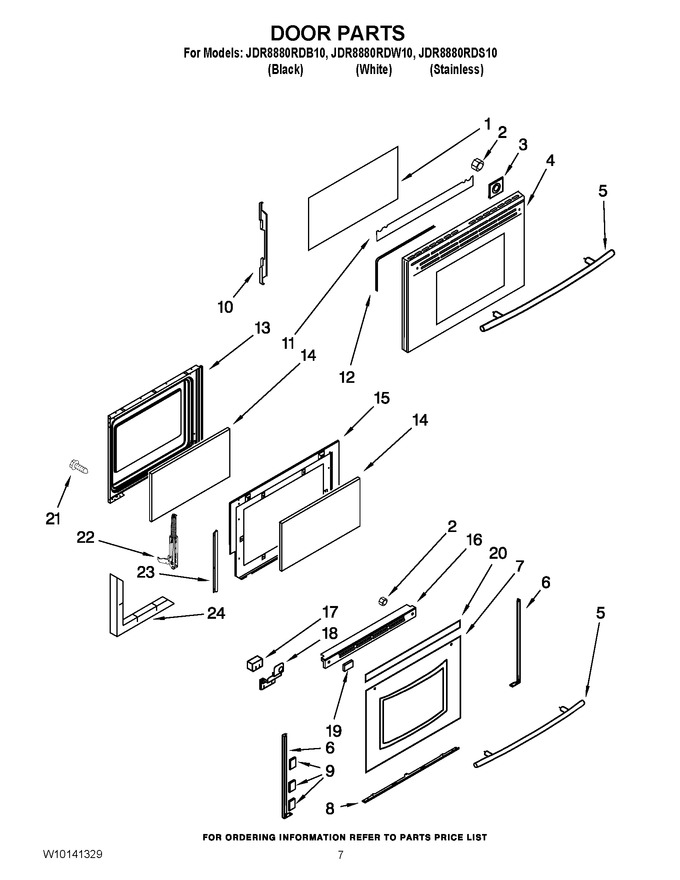

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P805-60		Glass, Outer		Appelez-nous	-
2	WP3400029		Nut   (Replaces: 311426)			Immediately	$ 7.76
3	W11190816		Spacer, Handle   (Replaces: 74008914)				$ 16.60
4	7760P218-60		Panel (stainless)				$ 239.97
5	74008920		Handle, Door		Appelez-nous	-
6	74010561		Trim, Side (white)		Appelez-nous	-
6	74010560		Trim, Side (black)		Appelez-nous	-
7	74008686		Glass, Door (black)		Appelez-nous	-
7	74008684		Glass, Door (white)		Appelez-nous	-
8	74008757		Trim, Bottom (white)		Appelez-nous	-
8	74008889		Trim, Bottom (black)		Appelez-nous	-
9	WP74009014		Tape, Double Sided (white)   (Replaces: 74009014)				$ 7.68
9	74009025		Tape, Double Sided (black)				$ 8.60
10	3801F918-51		Bracket, Glass (stainless Models)		Appelez-nous	-
11	7002P482-60		Insulation, Foil		Appelez-nous	-
12	74008916		Gasket, Window				$ 142.19
13	74008926		Liner, Door		Appelez-nous	-
14	74003645		Glass, Inner			Immediately	$ 180.59
15	3601F380-51		Baffle, Door (stainless Models)				$ 25.83
16	74008747		Trim, Top (white)		Appelez-nous	-
16	74008890		Trim, Top (black)		Appelez-nous	-
17	7002P484-60		Insulation, Door		Appelez-nous	-
18	74009412		Bracket, Handle (left)		Appelez-nous	-
18	74009413S		Bracket, Handle (right)		Appelez-nous	-
19	WP74004224		Tape   (Replaces: 74004224)				$ 11.70
20	8270P090-60		Tape, Foil (3``)		Appelez-nous	-
21	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
22	74010546		Hinge, Door			Immediately	$ 85.93
23	74011458		Bracket, Glass		Appelez-nous	-
24	74003647		Insulation,door		Appelez-nous	-
