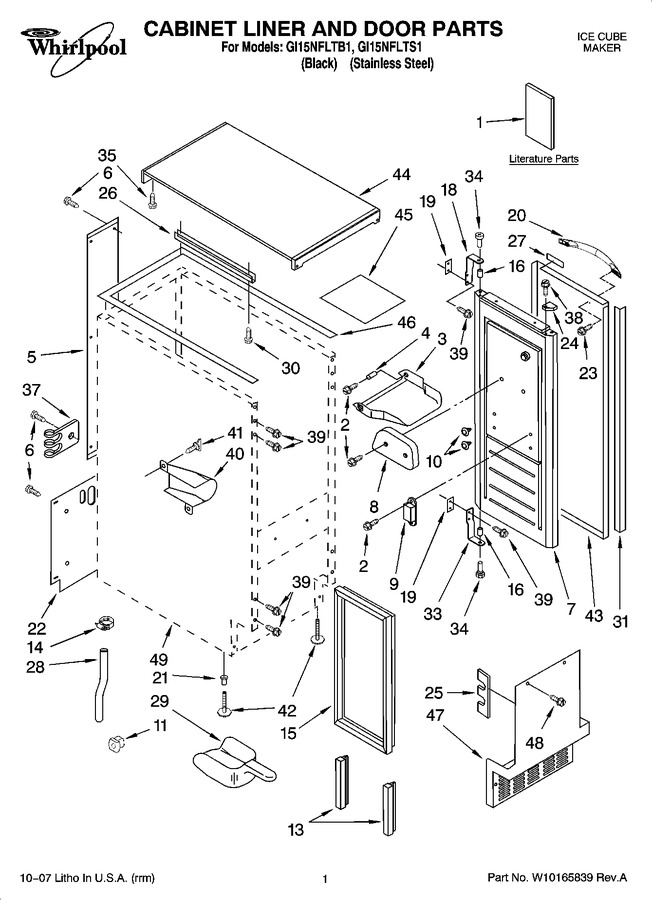

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313683		Use & Care Guide		Appelez-nous	-
1	2324311		Service & Wiring Sheet		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2932803B		Door (black)		Appelez-nous	-
8	2185695		Cam, Door				$ 95.66
9	W11223751		Assembly, Magnetic Catch   (Replaces: 2217393)				$ 62.40
10	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.77
11	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 8.02
13	2217367		Gasket, Bottom		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
16	2185640		Sleeve, Hinge		Appelez-nous	-
18	2185710		Hinge, Top				$ 94.38
19	2185709		Shim, Hinge		Appelez-nous	-
20	2313656US		Handle, Door (stainless Steel)		Appelez-nous	-
20	2313656B		Handle, Door (black)		Appelez-nous	-
21	3400240		Nut, Leg Leveler		Appelez-nous	-
22	WPW10136199		Assembly, Unit Cover   (Replaces: W10136199)				$ 108.85
23	WP179051		Screw   (Replaces: 3400037)			Immediately	$ 8.42
24	2185656B		(filler, Endcap Right Side) (black)		Appelez-nous	-
24	2185655B		Filler, Endcap Left Side (black)		Appelez-nous	-
25	W10532250		Pad, Foam   (Replaces: 2185756)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	9757613		Nameplate				$ 121.14
28	WP2185989		Tube, Drain   (Replaces: 2185989)				$ 115.22
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	2185964		Grommet-edge Guard				$ 19.98
33	2185711		Hinge, Bottom				$ 96.36
34	2185712		Pin, Hinge				$ 49.37
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
37	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
38	348689		Screw 8-18 X 3/4				$ 78.07
39	WP999367		Screw   (Replaces: 489423)				$ 8.56
40	2185927		Holder, Scoop				$ 89.07
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
43	2313648S		Wrap-door (stainless Steel)		Appelez-nous	-
43	2313648B		Wrap-door (black)		Appelez-nous	-
44	2929700B		Top (black)		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
47	WP2185571B		Grill, Front (black)   (Replaces: 2185571B)				$ 241.63
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
