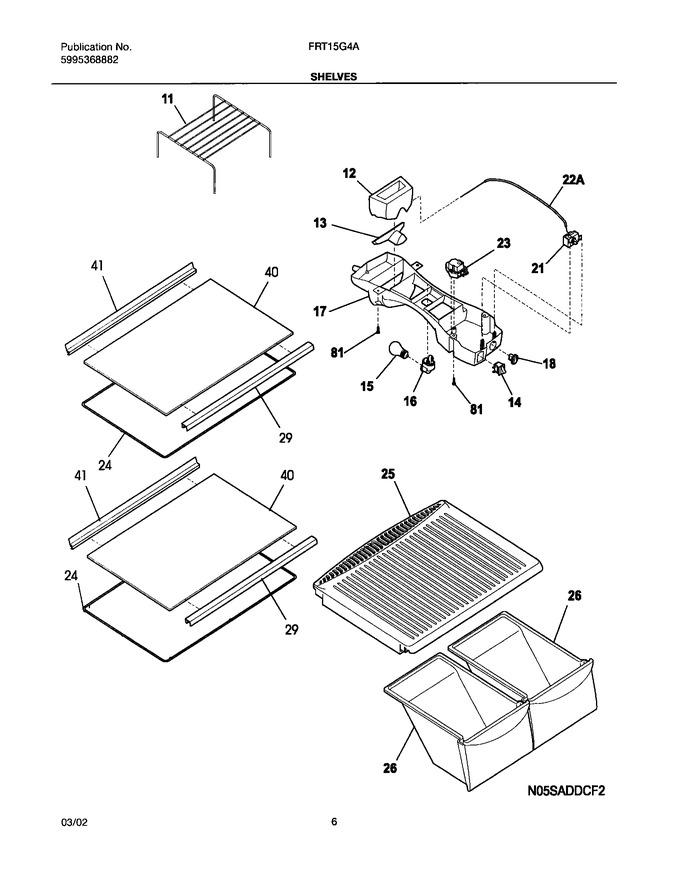

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 97.83 | ||||
| 12 | 240362502 | Diffuser-air,top |
|
- | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature (Replaces: 240436701) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 80.75 | |||||
| 17 | 240368002 | Control Box (Replaces: 240368001) |
|
$ 149.14 | |||||
| 18 | 240360801 | Knob-control |
|
$ 43.95 | |||||
| 24 | 240372404 | Frame-shelf,sliding ,full Width (Replaces: 240372401) |
|
Immediately | $ 114.60 | ||||
| 25 | 240364706 | Cover-crisper Pan |
|
- | |||||
| 26 | 240364503 | Pan-crisper,(2) |
|
Immediately | $ 162.81 | ||||
| 29 | 240357703 | Trim-shelf,front |
|
Immediately | $ 70.88 | ||||
| 40 | 240350619 | Panel,glass Shelf ,full Width |
|
$ 174.74 | |||||
| 41 | 240561501 | Trim-shelf,rear (Replaces: 240357803) |
|
Immediately | $ 49.61 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 10.11 | |||||
| F14 | 240505801 | Switch-light/lamp |
|
$ 74.03 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 31.33 | ||||
| NI | 5303299664 | Spacer-shelf |
|
$ 26.78 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 18.90 | |||||
| NI | 240371304 | Seal,foam ,air Diffuser |
|
$ 13.65 |
