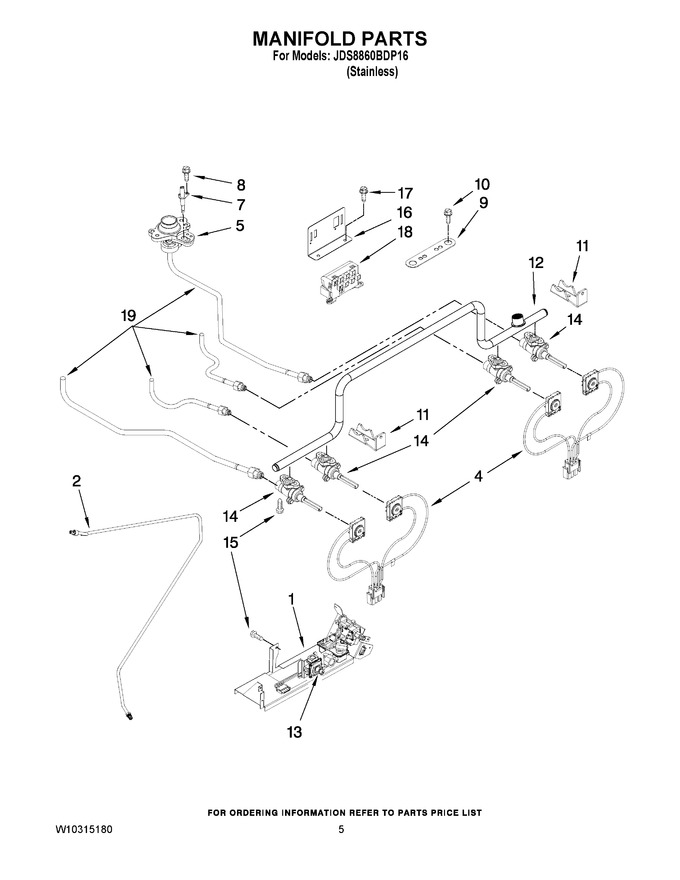

01 - Cooktop Parts
02 - Door Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F808-51 | Cover, Bnr Valve |
|
- | |||||
| 2 | W10224720 | Tubing, Gas Supply |
|
$ 250.43 | |||||
| 4 | WPW10181456 | Switch, Reignition (lf/lr) (Replaces: W10181456) |
|
Immediately | $ 207.44 | ||||
| 4 | W10181455 | Switch, Reignition (rf/rr) |
|
$ 202.14 | |||||
| 5 | WP7527P002-60 | Orifice, Holder (9.2k, Rr) (Replaces: 7527P002-60) |
|
$ 85.05 | |||||
| 5 | 74009553 | Orifice, Holder (5k,lr) (Replaces: 7527P042-60) |
|
$ 87.81 | |||||
| 5 | WP7527P061-60 | Orifice, Holder (dual, Lf) (Replaces: 7527P061-60) |
|
$ 113.03 | |||||
| 5 | WP7527P004-60 | Orifice, Holder (15k, Rf) (Replaces: 7527P004-60) |
|
$ 85.05 | |||||
| 7 | WP74009336 | Ignitor (Replaces: 7432P121-60) |
|
Immediately | $ 27.00 | ||||
| 8 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 9 | W10160530 | Retainer, Base |
|
- | |||||
| 10 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 11 | W10160655 | Bracket, Valve |
|
- | |||||
| 12 | W10165142 | Pipe, Manifold |
|
$ 114.40 | |||||
| 13 | 7510P101-60 | Valve, Regulator |
|
$ 151.00 | |||||
| 14 | 7502P561-60 | Valve, Top Burner (5k, Lr) |
|
$ 177.73 | |||||
| 14 | WP74011649 | Valve, Top Burner (dual Ring, Lf) (Replaces: 7502P533-60) |
|
$ 366.30 | |||||
| 14 | 7502P564-60 | Valve, Top Burner (15k, Rf) |
|
$ 117.14 | |||||
| 14 | 7502P562-60 | Valve, Top Burner (9.2k, Rr) |
|
$ 216.90 | |||||
| 15 | W11233072 | Support Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 16 | 3807F752-45 | Support, Module |
|
$ 27.55 | |||||
| 17 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 18 | WPW10475147 | Spark Module (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 19 | 7506P459-60 | Tube, Burner (lr) |
|
- | |||||
| 19 | 7506P457-60 | Tube, Burner (tubing, Inner Dual) |
|
$ 22.81 | |||||
| 19 | 7506P461-60 | Tube, Burner (rr) |
|
$ 30.72 | |||||
| 19 | 7506P460-60 | Tube, Burner (rf) |
|
$ 23.53 | |||||
| 19 | 7506P458-60 | Tube, Burner (tubing, Outer Dual) |
|
$ 22.37 | |||||
| NI | 7507P419-60 | Spuds, Lp Gas |
|
- |
