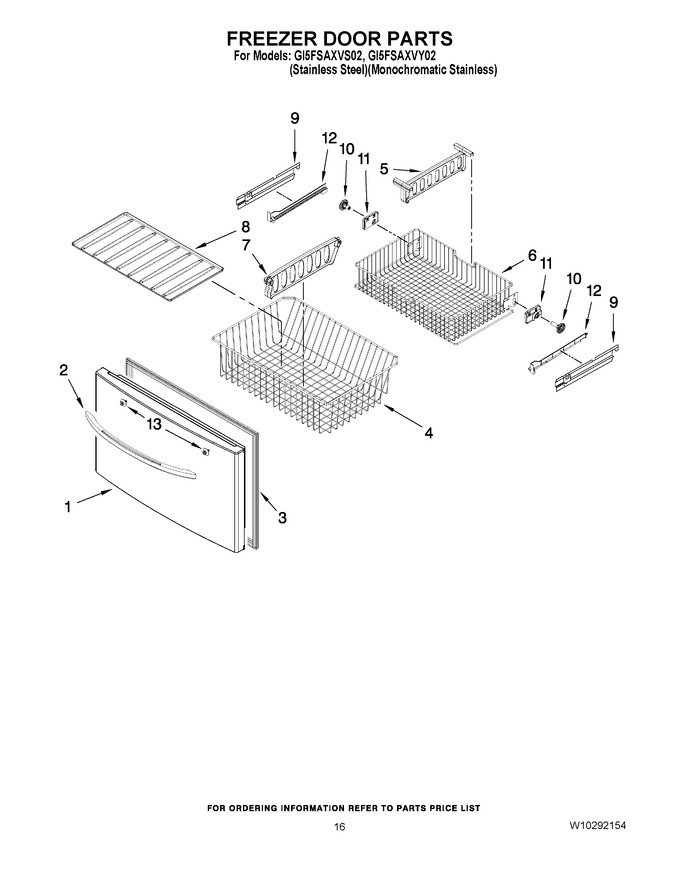

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977829SQ | Freezer Door (stainless Steel) |
|
- | |||||
| 1 | 12977830SQ | Freezer Door (mono Stainless) |
|
$ 530.32 | |||||
| 2 | W10223025 | Handle, Door (stainless) |
|
- | |||||
| 3 | WPW10436253 | Gasket, Door (black) (Replaces: W10164044) |
|
$ 360.89 | |||||
| 3 | WPW10714545 | Gasket, Door (apollo Grey) (Replaces: W10164045) |
|
$ 323.60 | |||||
| 4 | W10150039 | Basket, Lower |
|
$ 128.38 | |||||
| 5 | W10146439 | Divider, Upper Basket |
|
$ 32.66 | |||||
| 6 | W11218042 | Basket, Upper (Replaces: W10146448) |
|
$ 203.43 | |||||
| 7 | W10847995 | Divider, Lower Basket (Replaces: W10146440) |
|
$ 92.48 | |||||
| 8 | 13025202 | Tray, Lower Basket |
|
$ 31.80 | |||||
| 9 | WPW10280608 | Cradle, Basket (left) (Replaces: 12812303) |
|
$ 92.15 | |||||
| 9 | WPW10280613 | Cradle, Basket (right) (Replaces: 12812304) |
|
$ 92.15 | |||||
| 10 | WPW10474716 | Gear Spur (right) (Replaces: W10158749) |
|
Immediately | $ 32.42 | ||||
| 10 | WPW10474715 | Gear Spur (left) (Replaces: W10146446) |
|
Immediately | $ 32.76 | ||||
| 11 | W10348259 | Gear Mount (left) (Replaces: W10233898) |
|
$ 89.87 | |||||
| 11 | W10348260 | Gear Mount (right) (Replaces: W10233899) |
|
$ 89.90 | |||||
| 12 | W11489994 | Rack (right) (Replaces: W10216620) |
|
$ 23.46 | |||||
| 12 | W11489993 | Rack (left) (Replaces: W10216619) |
|
$ 23.46 | |||||
| 13 | WP12992902 | Screw, Handle (shoulder) (Replaces: 12992902) |
|
$ 11.91 |
