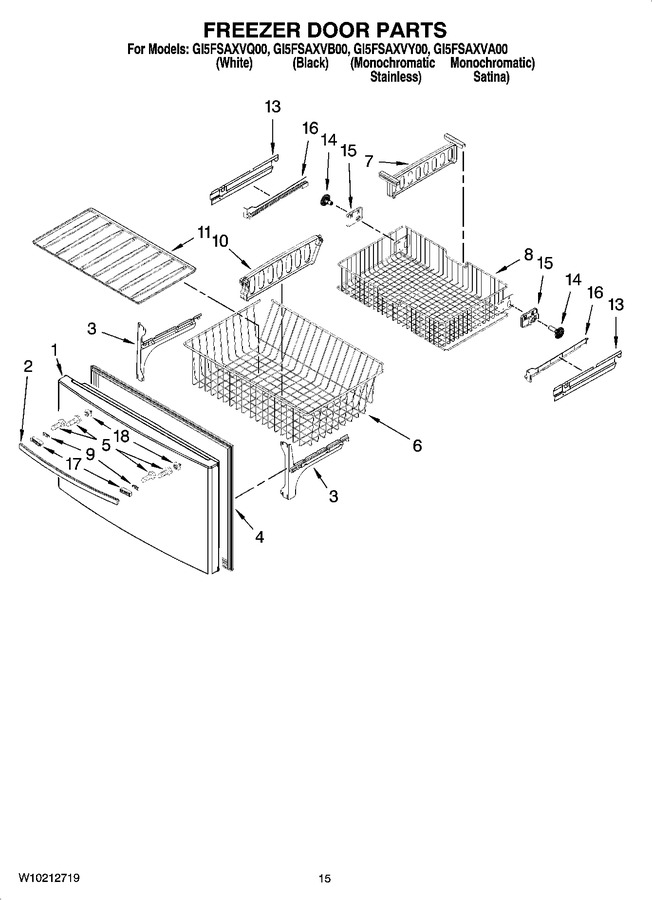

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977863WQ		Freezer Door (white)   (Replaces: W10217382)				$ 847.44
1	W10217383		Freezer Door (black)		Appelez-nous	-
1	12977816SQ		Freezer Door (stainless)				$ 574.32
1	12977816LQ		Freezer Door (satina)		Appelez-nous	-
2	W10159708		Handle, Door (white)		Appelez-nous	-
2	W10159711		Handle, Door (stainless)		Appelez-nous	-
2	W10159709		Handle, Door (black)				$ 90.70
3	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 156.49
3	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 158.18
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10191103)				$ 308.19
4	WPW10436253		Gasket, Door (black)   (Replaces: W10162895)				$ 343.70
4	WPW10443321		Gasket, Door (white)   (Replaces: W10162897)				$ 342.70
5	W10267047		Screw, Handle   (Replaces: W10201588)				$ 12.83
6	W10150039		Basket, Lower				$ 128.38
7	W10146439		Divider, Upper Basket				$ 31.10
8	W11218042		Basket, Upper   (Replaces: W10146448)				$ 193.74
9	13067102SP		Clip, Handle				$ 27.57
10	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 88.08
11	13025202		Tray, Lower Basket				$ 31.80
13	WPW10280613		Cradle, Basket (right)   (Replaces: W10187667)				$ 87.76
13	WPW10280608		Cradle, Basket (left)   (Replaces: W10187668)				$ 87.76
14	WPW10474715		Gear Spur (left)   (Replaces: W10146446)			Immediately	$ 31.20
14	WPW10474716		Gear Spur (right)   (Replaces: W10158749)			Immediately	$ 30.88
15	W10348259		Gear Mount (left)   (Replaces: W10146441)				$ 85.59
15	W10348260		Gear Mount (right)   (Replaces: W10146442)				$ 85.62
16	W11489993		Rack (left)   (Replaces: W10146443)				$ 22.34
16	W11489994		Rack (right)   (Replaces: W10146444)				$ 22.34
17	W10157435		Endcap, Handle (white)				$ 30.29
17	W10157436		Endcap, Handle (black)		Appelez-nous	-
18	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.07
