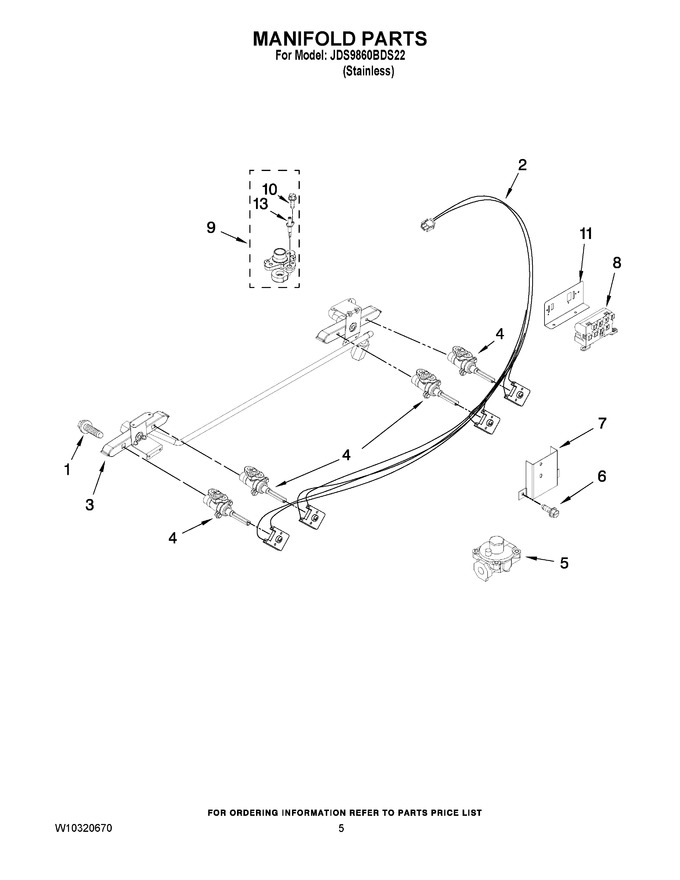

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P639-60		Screw, Valve (4)				$ 5.53
2	74011582		Harness, Igniter (with Switches)   (Replaces: 7450P005-60)				$ 216.63
3	7513P496-60		Pipe, Manifold				$ 347.32
4	7502P548-60		Valve (right Front)		Appelez-nous	-
4	74011583		Valve (left Front/rear)   (Replaces: 7502P547-60)				$ 272.00
4	7502P470-60		Valve (right Rear)		Appelez-nous	-
5	7510P077-60		Regulator, Pressure		Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
7	3801F913-51		Bracket, Regulator To Valve		Appelez-nous	-
8	WP7431P064-60		Module, Spark   (Replaces: 7431P064-60)				$ 308.99
9	WPW10407680		Holder, Orifice (right Rear)   (Replaces: 7527P084-60)				$ 109.61
9	WPW10407678		Holder, Orifice (right Front)   (Replaces: 7527P081-60)				$ 120.04
10	WP90767		Screw, Ignitor   (Replaces: 7101P426-60)			Immediately	$ 7.82
11	3807F752-45		Support, Spark Module				$ 27.55
13	WP8523793		Ignitor (rf, Rr)   (Replaces: 7432M126-60)			Immediately	$ 40.17
13	WP74006072		Ignitor (grill Burner)   (Replaces: 7432P112-60)			Immediately	$ 107.46
NI	7506P464-60		Tubing, Supply				$ 85.27
NI	7506P462-60		Tubing, Lf		Appelez-nous	-
NI	7506P463-60		Tubing, Lr				$ 143.88
NI	7506P465-60		Tubing, Rf				$ 74.61
NI	7506P466-60		Tubing, Rr		Appelez-nous	-
