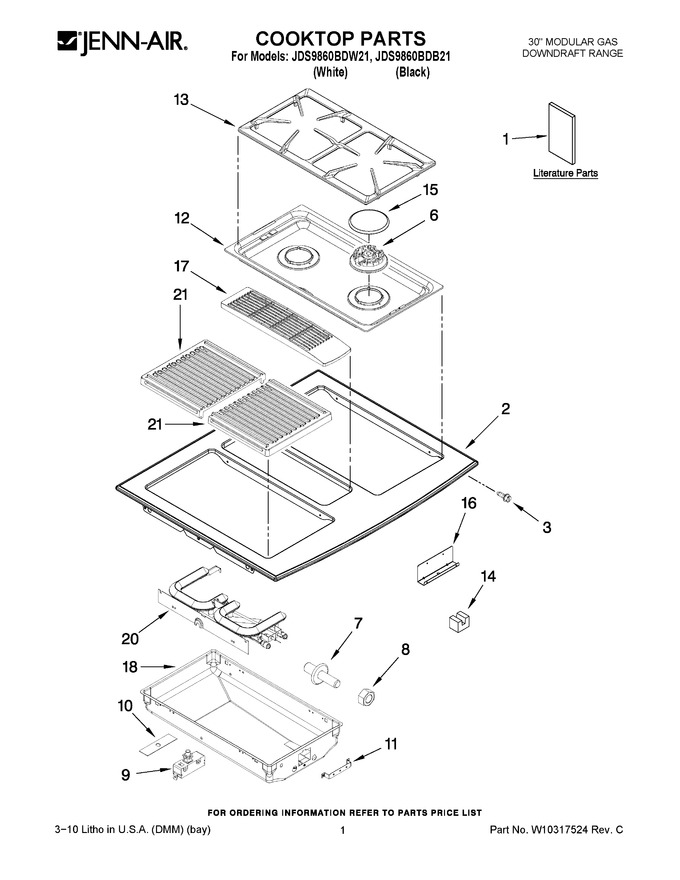

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P702-60 | Installation Instructions |
|
- | |||||
| 1 | 8119P394-60 | Wiring Diagram (usa) |
|
- | |||||
| 1 | 8119P395-60 | Wiring Diagram (canada) |
|
- | |||||
| 1 | 8113P753-60 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10204446 | Top, Main (white) |
|
- | |||||
| 2 | W10202594 | Top, Main (black) |
|
- | |||||
| 3 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 6 | 7540P047-60 | Burner, Head (right Front) |
|
- | |||||
| 6 | WPW10406243 | Burner, Head (right Rear) (Replaces: 8286181) |
|
Immediately | $ 37.22 | ||||
| 7 | 71001764 | Pin, Locator (Replaces: 7113P020-60) |
|
$ 9.64 | |||||
| 8 | Y052721 | Nut (Replaces: 7103P160-60) |
|
$ 23.76 | |||||
| 9 | WP7450P012-60 | Switch, Infinite (Replaces: 7450P012-60) |
|
Immediately | $ 150.60 | ||||
| 10 | 7003P129-60 | Switch, Insulator |
|
- | |||||
| 11 | 7112P150-60 | Clip, Terminal Block |
|
- | |||||
| 12 | 2001F270-81 | Top, Black |
|
- | |||||
| 13 | 7518P341-60 | Grate |
|
- | |||||
| 14 | 8255P412-60 | Block, Support |
|
$ 31.52 | |||||
| 15 | 7504P204-60 | Cap, Burner (black Rf) |
|
- | |||||
| 15 | WP8284669 | Cap, Burner (black Rr) (Replaces: 7504P202-60) |
|
Immediately | $ 71.99 | ||||
| 16 | 3807F743-51 | Support, Cartridge Pan |
|
- | |||||
| 17 | 7772P045-60 | Grille, Air |
|
- | |||||
| 18 | 3401F099-19 | Grille Pan, Left |
|
$ 188.12 | |||||
| 20 | 7505P290-60 | Burner, Grille |
|
- | |||||
| 21 | 7518P070-60 | Grate, Grille |
|
- |
