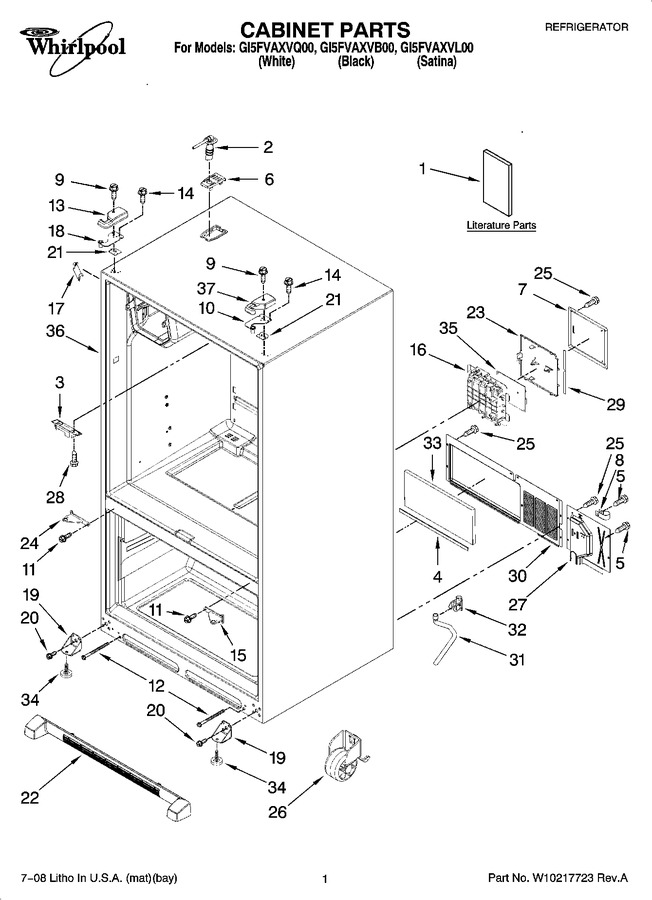

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828185SP		Use & Care Guide		Appelez-nous	-
1	W10202396		Guide, Energy		Appelez-nous	-
1	W10141352		Tech Sheet		Appelez-nous	-
2	W11415785		Tube W/waterline, Fill-im   (Replaces: 67006317)			Immediately	$ 62.39
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket, Mc Back		Appelez-nous	-
5	67006425		Screw (3)			Immediately	$ 7.30
6	12981401B		Cover, Fill Tube (black)   (Replaces: 67006320)				$ 13.25
6	12981401W		Cover, Fill Tube (white)   (Replaces: 67006321)				$ 13.25
7	67006427		Cover, Control Box		Appelez-nous	-
8	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
9	WP8281196		Screw, Hinge Cover   (Replaces: 67006521)			Immediately	$ 7.19
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 29.02
11	W11573362		Screw, Center Hinge   (Replaces: 67006380)				$ 14.02
12	71003131		Bolt, Roller Adj.   (Replaces: 67006611)			Immediately	$ 7.08
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 67005951)			Immediately	$ 22.22
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 67005953)			Immediately	$ 22.42
14	WP489349		Screw, Top Hinge   (Replaces: 67006303)			Immediately	$ 7.88
15	67006379		Hinge, Center (rt) (white)		Appelez-nous	-
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64
16	WP67006390		Box, Hv Control   (Replaces: 67006390)				$ 204.37
17	67003484		Cover, Corner (2) (white)				$ 21.42
17	67003485		Cover, Corner (2) (black)			Immediately	$ 22.14
18	W11592375		Hinge, Top Left   (Replaces: 12963204ED)				$ 29.09
19	12906303WD		Bracket, Foot				$ 88.58
20	67006564		Screw (8)			Immediately	$ 8.15
21	12999501		Shim, Top Hinge (left)   (Replaces: 67006308)				$ 99.53
21	12999502		Shim, Top Hinge (right)   (Replaces: 67006309)				$ 100.60
22	WPW10534154		Grille, Toe (white)   (Replaces: 67006377)				$ 146.34
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 147.21
23	12957701SP		Lid, Hv Control		Appelez-nous	-
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 67006277)				$ 93.26
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
25	W11686675		Screw, Cover   (Replaces: 12990702)				$ 13.59
26	67006118		Roller Assy. (2)		Appelez-nous	-
27	67006426		Cover, Water Valve		Appelez-nous	-
28	W11233072		Screw, Block   (Replaces: 67006626)			Immediately	$ 14.02
29	67006429		Gasket, Hv Control				$ 11.24
30	12575101ED		Cover, Mc Back		Appelez-nous	-
31	W10164397		Tube, Drain				$ 14.79
32	W10157973		Clip, Drain Tube				$ 7.80
33	67003796		Fiber, Acoustic				$ 19.27
34	W11177593		Brake, Foot   (Replaces: 67003868)				$ 11.60
35	WPW10310240		Board, Hv Control   (Replaces: W10191108)			Immediately	$ 391.86
37	67005958		Cover, Top Hinge (right) (white)				$ 21.57
37	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 67005956)				$ 21.47
