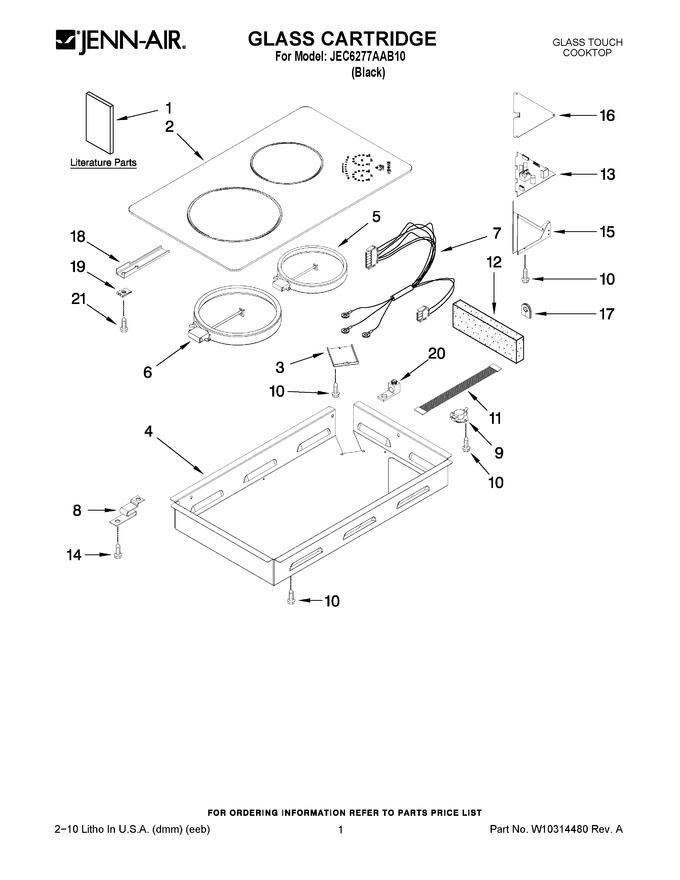

01 - Glass Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8111P484-60 | Use & Care Guide |
|
- | |||||
| 1 | 8119P352-60 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Tips For Safer Cooking |
|
- | |||||
| 2 | 7920P199-60 | Glass/frame Assy. |
|
$ 289.42 | |||||
| 3 | 4005F786-51 | Cover, Junction Box |
|
- | |||||
| 4 | 4011F493-51 | Bottom, Burner Box |
|
- | |||||
| 5 | 7406P487-60 | Element (6``) |
|
- | |||||
| 6 | 7406P488-60 | Element (8``) |
|
$ 220.02 | |||||
| 7 | 5171P776-60 | Harness, Main |
|
- | |||||
| 8 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 9 | 7450P083-60 | Thermostat |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 11 | 5171P826-60 | Harness, Control |
|
- | |||||
| 12 | 7002P485-60 | Insulation |
|
- | |||||
| 13 | 8507P319-60 | Control Board |
|
$ 407.61 | |||||
| 14 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 15 | 3601F377-51 | Baffle, Control |
|
- | |||||
| 16 | 4005F784-51 | Cover, Access |
|
- | |||||
| 17 | 8008P068-60 | Grommet, Wire |
|
$ 16.79 | |||||
| 18 | 3801F915-51 | Bracket, Hold Down |
|
- | |||||
| 19 | 7104P015-60 | Clip |
|
- | |||||
| 20 | WPW10281322 | Kit, Wire Adapter (Replaces: 7401P157-60) |
|
$ 8.87 | |||||
| 21 | 7101P678-60 | Screw |
|
- |
