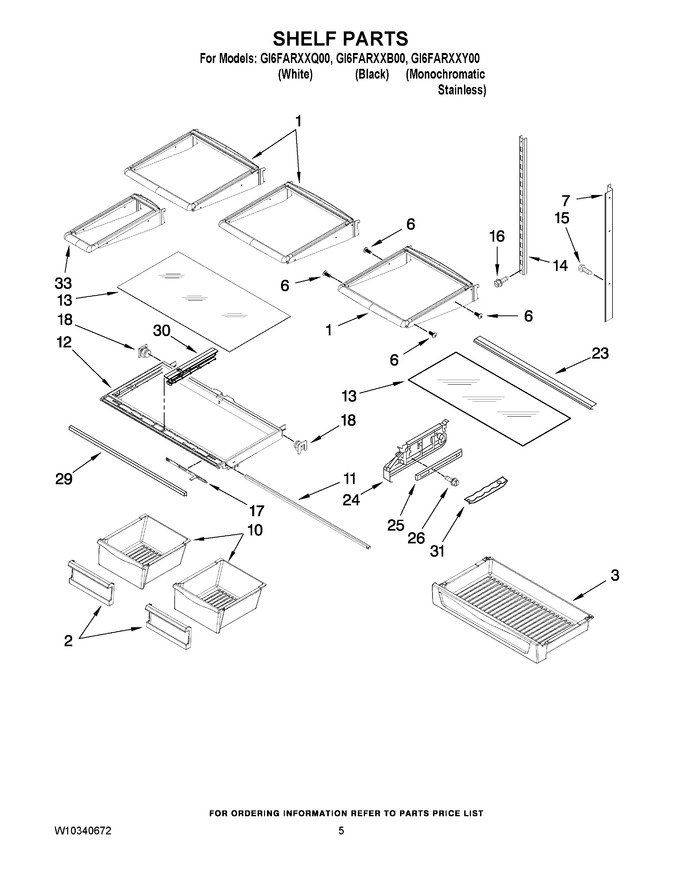

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11402525 | Shelf, Glide (Replaces: 12883507) |
|
$ 223.28 | |||||
| 2 | 12727402SP | Handle, Crisper Pan (2) |
|
- | |||||
| 3 | WPW10330534 | Drawer, Pantry (Replaces: W10330534) |
|
$ 175.41 | |||||
| 6 | W10854958 | Track, Pantry (Replaces: 12990302) |
|
$ 7.43 | |||||
| 7 | W10251968 | Ladder, Side (left) |
|
$ 26.08 | |||||
| 7 | W10251965 | Ladder, Side (right) |
|
$ 29.60 | |||||
| 10 | WP67004515 | Pan, Crisper (2) (Replaces: 12804601SP) |
|
Immediately | $ 168.30 | ||||
| 11 | WP12642303WD | Brace, Crisper Cover (Replaces: 12642303WD) |
|
$ 106.91 | |||||
| 12 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 227.55 | ||||
| 13 | WP12204826 | Glass, Crisper Cover (Replaces: 12204826) |
|
$ 241.98 | |||||
| 14 | W10273464 | Ladder, Center |
|
Immediately | $ 28.75 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 16 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.13 | |||||
| 17 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 18 | WP13062602 | Supports, Crisper Frame (Replaces: 13062602) |
|
$ 80.83 | |||||
| 23 | W11812285 | Support, Glass (Replaces: 12655902SP) |
|
$ 50.79 | |||||
| 24 | W10326934 | Endcap, Pantry (right) |
|
- | |||||
| 24 | W10395616 | Endcap, Pantry (left) (Replaces: W10326936) |
|
$ 24.22 | |||||
| 25 | W10346888 | Glide, Pantry (right) |
|
- | |||||
| 25 | W10346889 | Glide, Pantry (left) |
|
- | |||||
| 26 | W10185612 | Screw |
|
$ 6.74 | |||||
| 29 | WPW10231345 | Trim, Crisper (Replaces: W10231345) |
|
$ 131.11 | |||||
| 30 | WPW10326469 | Rail, Center (Replaces: 12796401) |
|
Immediately | $ 30.70 | ||||
| 31 | WP67001719 | Track, Deli (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 33 | W11197490 | Shelf, Mini (Replaces: 12885501N) |
|
$ 230.52 |
