SELECT A DIAGRAM
01 - Body
02 - Top Assembly
03 - Wiring Information
04 - Wiring Information (frc)
New Model Search:

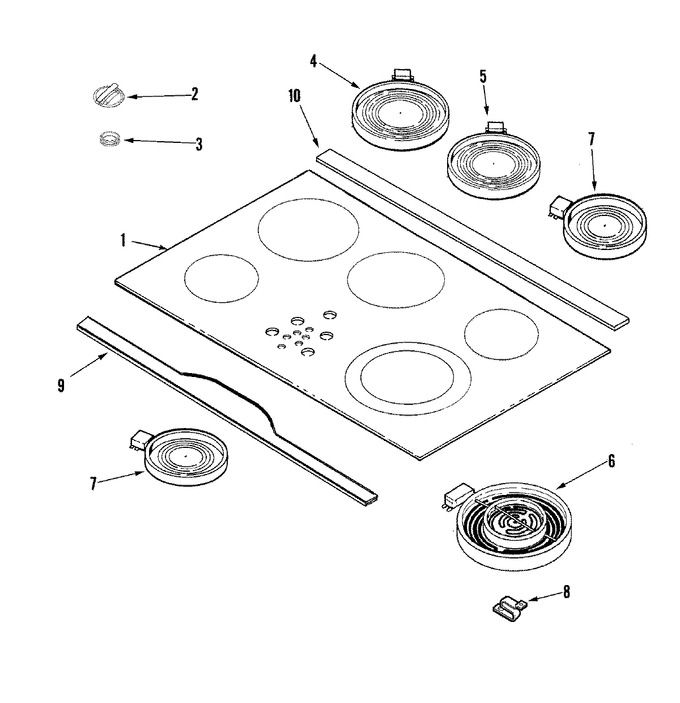

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008087 | Top Assembly (wht) | 10 |
|
- | ||||
| 1 | 12002793 | Tape, Foam (Replaces: 74007941) | 10 |
|
$ 82.80 | ||||
| 2 | WP7737P245-60 | Knob (chr) (Replaces: 74007918) | 10 |
|
Immediately | $ 17.00 | |||
| 3 | WPW10293874 | Grommet (Replaces: 74007885) | 10 |
|
Immediately | $ 8.46 | |||
| 4 | WP74011005 | Element (2000w) (Replaces: 74011005) | 13 |
|
Immediately | $ 322.00 | |||
| 4 | W10823708 | Element (2000w) (Replaces: 74007839) | 10 |
|
$ 358.87 | ||||
| 5 | WP8523700 | Element, Warming (Replaces: 74008571) | 13 |
|
Immediately | $ 185.60 | |||
| 5 | WP8523700 | Element, W/limiter (warming) (Replaces: 74006584) | 10 |
|
Immediately | $ 185.60 | |||
| 6 | 74008228 | Element, Dual (3000w) | 10 |
|
$ 191.51 | ||||
| 7 | W10823704 | Element W/limiter (6``) (Replaces: 74005476) | 10 |
|
Immediately | $ 360.51 | |||
| 7 | W10823711 | Element (1200w) (Replaces: 74008568) | 13 |
|
Immediately | $ 204.39 | |||
| 8 | 74007845 | Support, Element | 10 |
|
- | ||||
| 11 | 74008073 | Harness (ctl/element) | 10 |
|
$ 9.29 | ||||
| 12 | 74008078 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | WA906B | Razor, Scraper (Replaces: 74007585) | 10 |
|
Immediately | $ 5.40 | |||
| 13 | 20001080 | Cooktop Cleaning Creme 4 Oz | 10 |
|
$ 3.95 |
