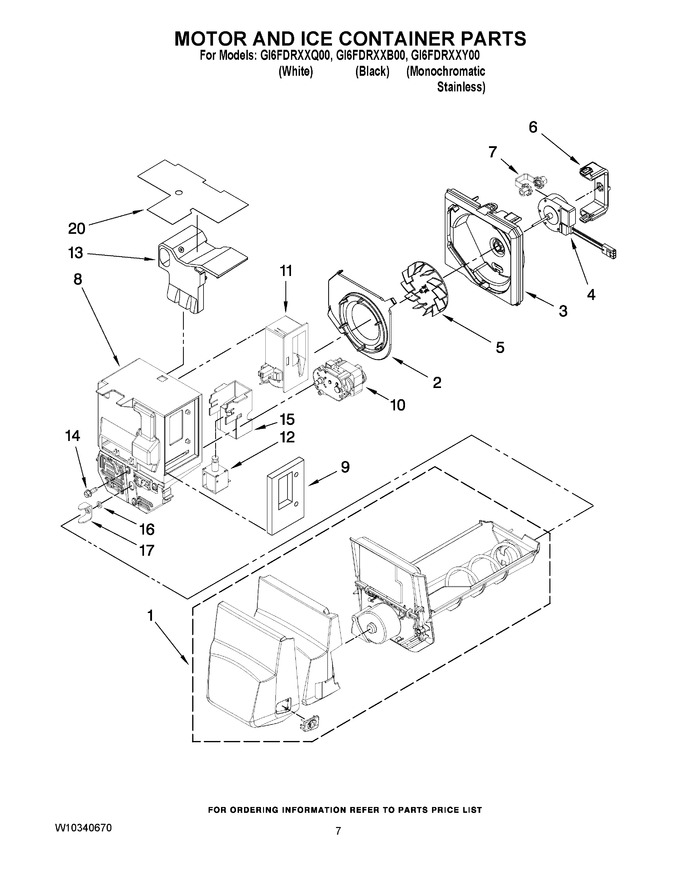

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11185686 | Ice Bin Assembly (includes Auger) (Replaces: W10337301) |
|
Immediately | $ 320.60 | ||||
| 2 | W10121282 | Inlet, Blower |
|
$ 16.80 | |||||
| 3 | W10309863 | Scroll, Blower |
|
$ 88.24 | |||||
| 4 | W11529245 | Motor, Fan (Replaces: W10308033) |
|
$ 202.88 | |||||
| 5 | WPW10123444K | Wheel, Blower (Replaces: W10123444) |
|
$ 88.10 | |||||
| 6 | W10165970 | Clip, Fan Motor (Replaces: 12956603) |
|
$ 84.92 | |||||
| 7 | W10151687 | Grommet, Fan Motor |
|
$ 13.08 | |||||
| 8 | WPW10309864 | Divider, Ice Box (Replaces: W10309864) |
|
Immediately | $ 121.16 | ||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 12920001) |
|
$ 7.96 | |||||
| 10 | W11671282 | Motor, Auger (Replaces: W10309868) |
|
Immediately | $ 110.51 | ||||
| 11 | WPW10196393 | Damper, Control (Replaces: W10196393) |
|
Immediately | $ 166.07 | ||||
| 12 | WPW10309866 | Solenoid (Replaces: W10309866) |
|
$ 210.15 | |||||
| 13 | W11676504 | Liner, Divider (Replaces: W10118612) |
|
$ 24.23 | |||||
| 14 | 67006425 | Screw (3) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 15 | W10309865 | Bracket, Solenoid |
|
- | |||||
| 16 | 67006346 | Washer (Replaces: 420107A700) |
|
$ 15.21 | |||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052A001) |
|
Immediately | $ 68.91 | ||||
| 20 | W10142628 | Foil, Ice Box |
|
$ 55.83 |
