SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts

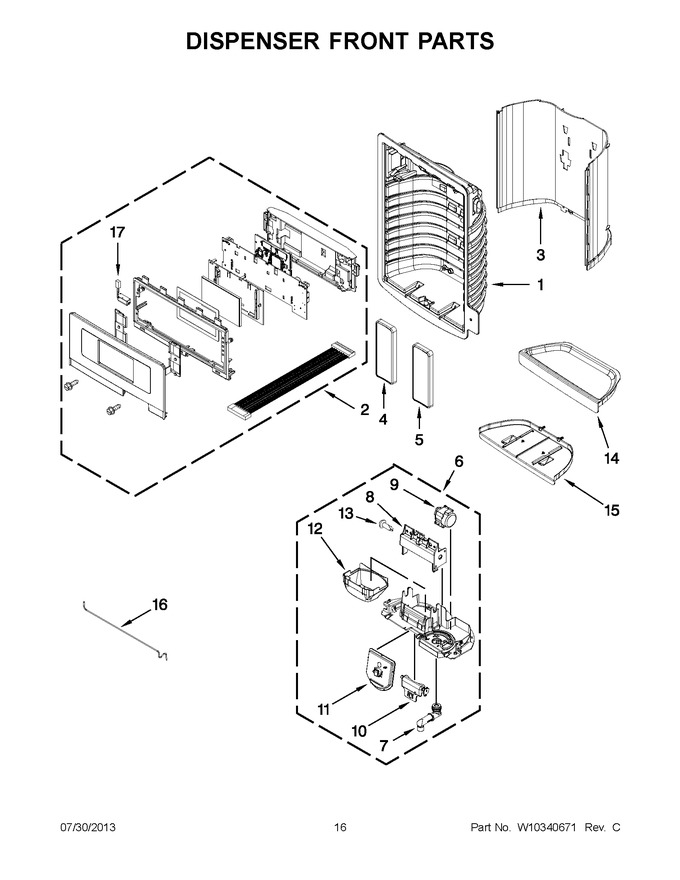

08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11184112		Assembly, Ui   (Replaces: W10337911)				$ 387.36
3	W11045978		False, Wall, Dispenser (grey)   (Replaces: W10299897)				$ 86.03
3	W11045976		False, Wall, Dispenser (black)   (Replaces: W10233560)				$ 41.12
3	W11045975		False, Wall, Dispenser (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10368729		Pad, Ice (black)   (Replaces: W10308359)				$ 294.08
4	WPW10368730		Pad, Ice (nickel)   (Replaces: W10308361)			Immediately	$ 304.26
4	W10308358		Pad, Ice (white)		Appelez-nous	-
5	W10307621		Pad, Water (white)		Appelez-nous	-
5	WPW10368730		Pad, Water (nickel)   (Replaces: W10307624)			Immediately	$ 304.26
5	W10368729		Pad, Water (black)   (Replaces: W10307622)				$ 294.08
6	WPW10353552		Separator Assembly   (Replaces: W10278973)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 129.89
8	W10174827		Bracket, Ice Door				$ 72.78
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
10	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 99.69
11	W10346235		Door, Ice   (Replaces: W10174811)				$ 162.21
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 99.69
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.49
14	W11192301		Tray, Dispenser (grey)   (Replaces: W10299895)				$ 62.69
14	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 62.76
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 62.79
15	W10267860		Slide, Tray Dispenser (white)		Appelez-nous	-
15	W10267861		Slide Tray, Dispenser (black)				$ 70.85
15	WPW10267863		Slide Tray, Dispenser (grey)   (Replaces: W10267863)				$ 69.73
16	W10296451		Tube, Water				$ 53.54
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 80.43
