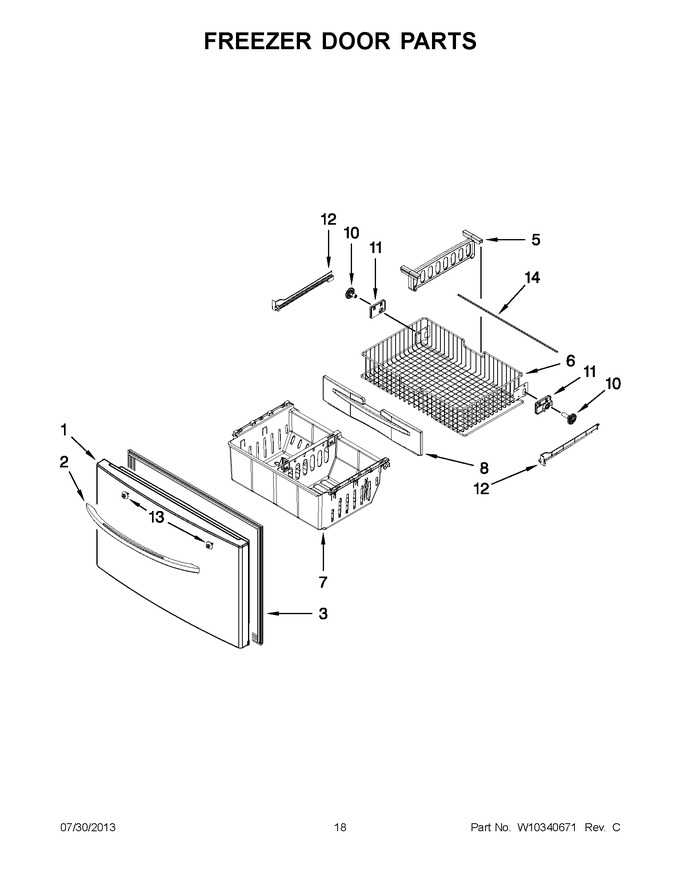

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977863WQ		Freezer Door (white)   (Replaces: W10174214)				$ 847.44
1	12977863BQ		Freezer Door (black)   (Replaces: 12977834B)				$ 864.29
1	12977846S		Freezer Door (stainless)		Appelez-nous	-
1	12977811D		Freezer Door (universal Silver)		Appelez-nous	-
2	W10223025		Handle, Door (stainless)		Appelez-nous	-
2	W10223022		Handle, Door (white)		Appelez-nous	-
2	WPW10223023K		Handle, Door (black)   (Replaces: W10223023)				$ 191.10
3	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 343.70
3	WPW10714545		Gasket, Door (grey)   (Replaces: W10164045)				$ 308.19
3	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 342.70
5	W10146439		Divider, Upper Basket				$ 31.10
6	W11218042		Basket, Freezer (upper)   (Replaces: W10146448)				$ 193.74
7	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 172.55
8	W10310696		Trim, Upper		Appelez-nous	-
10	WPW10474716		Gear Spur (right Hand)   (Replaces: W10158749)			Immediately	$ 30.88
10	WPW10474715		Gear Spur (left Hand)   (Replaces: W10146446)			Immediately	$ 31.20
11	W10348259		Gear Mount (left Hand)   (Replaces: W10233898)				$ 85.59
11	W10348260		Gear Mount (right Hand)   (Replaces: W10233899)				$ 85.62
12	W11489993		Rack (left Hand)   (Replaces: W10284694)				$ 22.34
12	W11489994		Rack (right Hand)   (Replaces: W10284695)				$ 22.34
13	WP12992902		Screw   (Replaces: 12992902)				$ 11.07
14	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 30.84
