SELECT A DIAGRAM

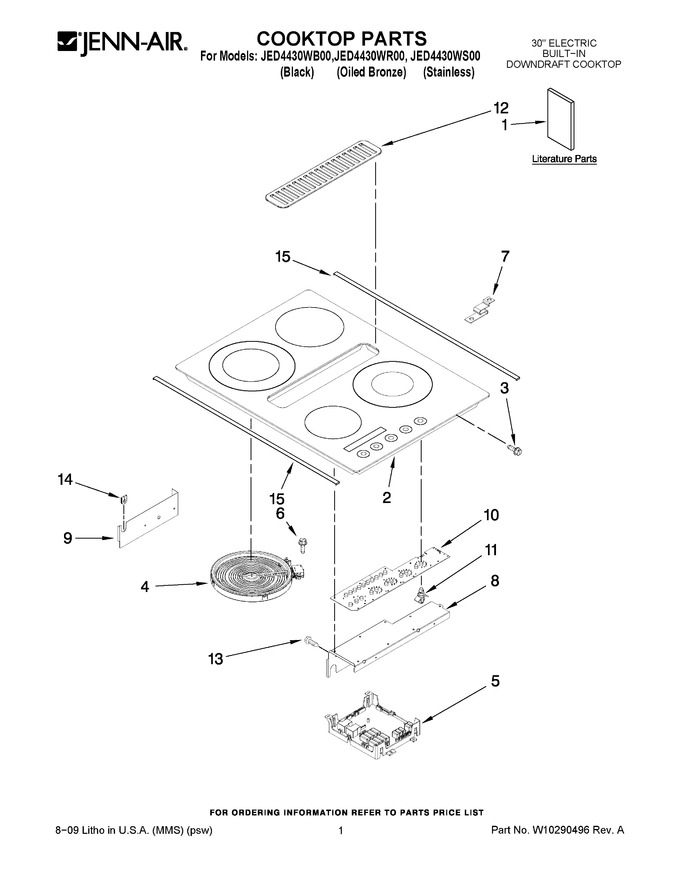

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10197059		Installation Instructions		Appelez-nous	-
1	W10254693		Wiring Diagram (english)		Appelez-nous	-
1	W10254694		Wiring Diagram (french)		Appelez-nous	-
1	W10197057		Use & Care Guide		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
2	W10163202		Top, Main (black/stainless)				$ 983.76
2	W10163204		Top, Main (oiled Bronze)				$ 1,035.30
3	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
4	W11171119		Element, Surface (rf)   (Replaces: 8273994)			Immediately	$ 182.23
4	WPW10221529		Element, Surface (rr)   (Replaces: W10221529)				$ 355.46
4	WP8273993		Element, Surface (lr)   (Replaces: 8273993)			Immediately	$ 244.51
4	WPW10178022		Element, Surface (lf)   (Replaces: W10178022)			Immediately	$ 320.07
5	WPW10190396		Board, Control   (Replaces: W10190396)			Immediately	$ 379.87
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
7	8004P093-60		Support, Ceramic				$ 10.61
8	W10225919		Plate, Switch		Appelez-nous	-
9	W10223167		Bracket, Shield		Appelez-nous	-
10	WPW10190398		Switch, Control   (Replaces: W10190398)				$ 453.62
11	W10225914		Support, Locking		Appelez-nous	-
12	WPW10205094		Grille, Air   (Replaces: W10205094)				$ 255.44
13	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
14	8008P068-60		Wire, Grommet				$ 16.79
15	W10168883		Trim Stainless Only				$ 56.79

    View Diagram in Separate Window       Print Part List
