SELECT A DIAGRAM
New Model Search:

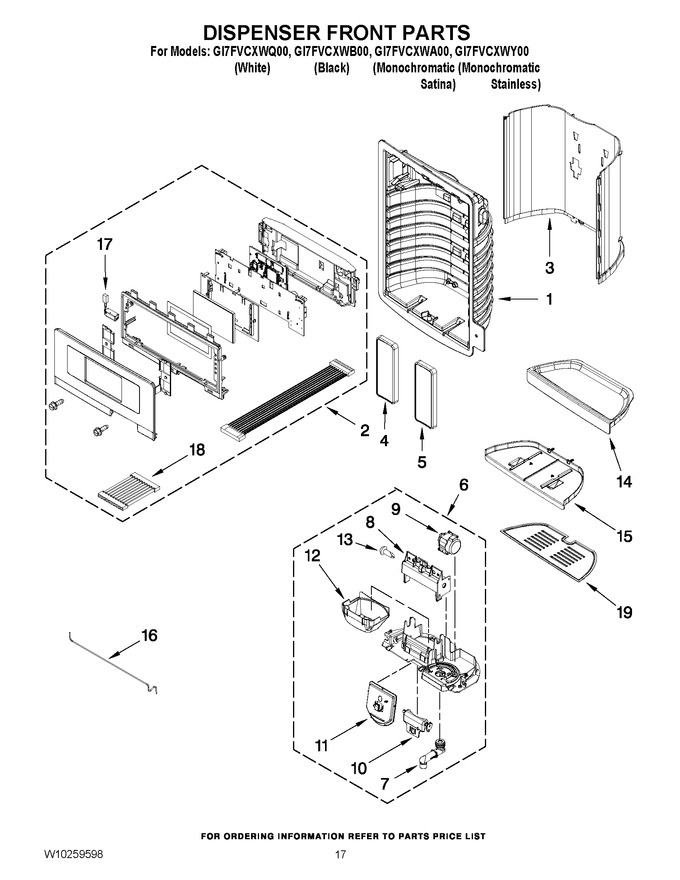

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10271910 | Ui Assembly (satina) |
|
- | |||||
| 2 | W10271909 | Ui Assembly (black) |
|
- | |||||
| 2 | W10271911 | Ui Assembly (stainless) |
|
- | |||||
| 2 | W10271908 | Ui Assembly (white) |
|
- | |||||
| 3 | W11045976 | False Wall, Dispenser (black) (Replaces: W10233560) |
|
$ 41.12 | |||||
| 3 | W10268793 | False Wall, Dispenser (satina) |
|
- | |||||
| 3 | W10268792 | False Wall, Dispenser (stainless) |
|
- | |||||
| 3 | W11045975 | False Wall, Dispenser (white) (Replaces: W10215699) |
|
- | |||||
| 4 | W10368729 | Pad, Ice (black) (Replaces: W10212874) |
|
$ 294.08 | |||||
| 4 | W10212873 | Pad, Ice (white) |
|
- | |||||
| 4 | WPW10368730 | Pad, Ice (nickel) (Replaces: W10212876) |
|
Immediately | $ 304.26 | ||||
| 5 | WPW10368730 | Pad, Water (nickel) (Replaces: W10212881) |
|
Immediately | $ 304.26 | ||||
| 5 | W10212879 | Pad, Water (black) |
|
- | |||||
| 5 | W10212878 | Pad, Water (white) |
|
- | |||||
| 6 | W10215954 | Separator Assembly (stainless) |
|
- | |||||
| 6 | W10215987 | Separator Assembly (black) |
|
- | |||||
| 6 | W10180830 | Separator Assembly (white) |
|
- | |||||
| 6 | W10215984 | Separator Assembly (satina) |
|
- | |||||
| 7 | W11227371 | Spigot (Replaces: 2316647) |
|
$ 129.89 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 72.78 | |||||
| 9 | WPW10184813 | Motor, Ice Door (Replaces: W10184813) |
|
Immediately | $ 103.17 | ||||
| 10 | W10499850 | Support, Ice Door (Replaces: W10174809) |
|
$ 99.69 | |||||
| 11 | W10346235 | Door, Ice (Replaces: W10174811) |
|
$ 162.21 | |||||
| 12 | W10499850 | Guide, Ice (Replaces: W10174808) |
|
$ 99.69 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.49 | |||||
| 14 | W10267866 | Tray, Dispenser (satina) |
|
- | |||||
| 14 | W11045971 | Tray, Dispenser (black) (Replaces: W10267870) |
|
$ 62.76 | |||||
| 14 | W11045970 | Tray, Dispenser (white) (Replaces: W10267869) |
|
$ 62.79 | |||||
| 14 | WPW10305897 | Tray, Dispenser (stainless) (Replaces: W10267864) |
|
$ 80.77 | |||||
| 15 | W10267861 | Slide, Tray Dispenser (black) |
|
$ 70.85 | |||||
| 15 | WPW10267863 | Slide, Tray Dispenser (apollo Grey) (Replaces: W10267863) |
|
$ 69.73 | |||||
| 15 | W10267860 | Slide, Tray Dispenser (white) |
|
- | |||||
| 16 | W10180827 | Tube, Water (dispenser) |
|
- | |||||
| 17 | W10143532 | Led |
|
- | |||||
| 18 | W10193350 | Harness, Jumper |
|
$ 56.57 | |||||
| 19 | W10215957 | Grate, Drip Tray |
|
$ 52.76 |
