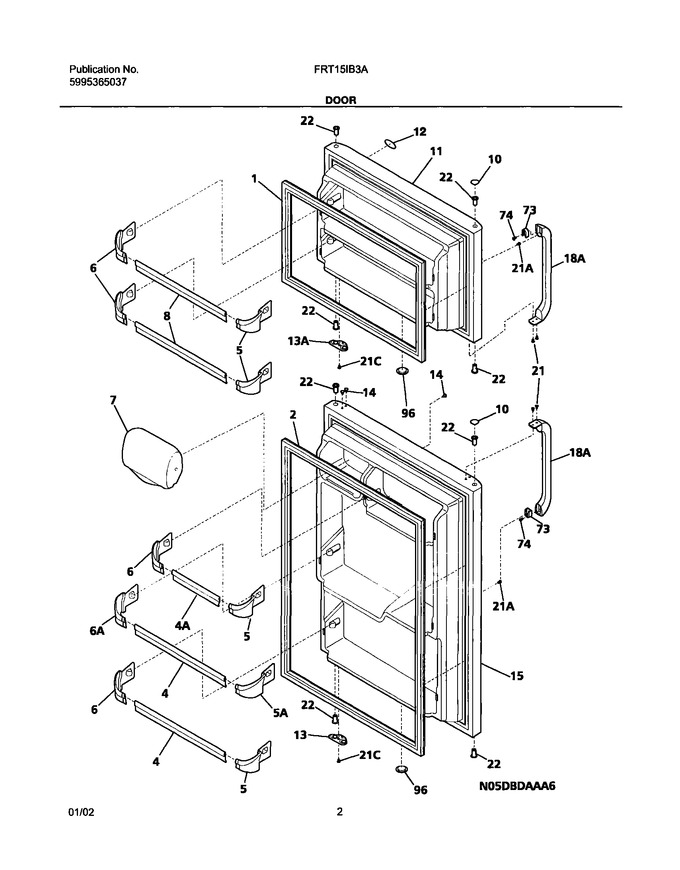

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240331401 | Rack-door,18.65`` (Replaces: 240331404) |
|
Immediately | $ 53.09 | ||||
| 5 | 240311502 | Support-door Rack,2 Liter ,rh |
|
Immediately | $ 12.60 | ||||
| 6 | 240311501 | Support-door Rack,2 Liter ,lh |
|
Immediately | $ 12.60 | ||||
| 7 | 240337701 | Door-dairy,w/o Graphics ,white |
|
Immediately | $ 37.80 | ||||
| 8 | 240331401 | Rack-door,16.21`` (Replaces: 240331405) |
|
Immediately | $ 53.09 | ||||
| 10 | 240381302 | Plug-button,bisque ,hinge Brg Hole ,(2) |
|
$ 19.06 | |||||
| 11 | 240415402 | Door,frzr ,bisque ,complete Assy |
|
$ 366.85 | |||||
| 12 | 241808601 | Label-nameplate,bisque (Replaces: 240415203) |
|
$ 14.10 | |||||
| 13 | 240312423 | Door Stop,bisque ,ref (Replaces: 240312407) |
|
$ 13.48 | |||||
| 14 | 240494002 | Plug-button,bisque |
|
$ 41.12 | |||||
| 15 | 240415502 | Door,refr ,bisque ,complete Assy |
|
$ 345.19 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color ,(8) (Replaces: 240311201) |
|
Immediately | $ 8.43 | ||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 50.40 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.88 | ||||
| 96 | 240345505 | Plug,door Foam Hole ,white |
|
$ 12.90 | |||||
| 13A | 240312408 | Door Stop,bisque ,frzr |
|
- | |||||
| 18A | 5304537010 | Handle-door,bisque ,w/block & Screw (Replaces: 218428119) |
|
- | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 (Replaces: 240521301) |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| 4A | 240331407 | Rack-door,9.04`` |
|
$ 64.16 | |||||
| 5A | 240331502 | Support-door Rack,gallon ,rh |
|
Immediately | $ 14.96 | ||||
| 6A | 240331501 | Support-door Rack,gallon ,lh |
|
Immediately | $ 14.96 | ||||
| F1 | 241872501 | Gasket-frzr Door,white ,magnetic (Replaces: 240514601) |
|
Immediately | $ 149.10 | ||||
| F2 | 241872502 | Gasket-refr Door,white ,magnetic (Replaces: 240514602) |
|
Immediately | $ 180.10 |
