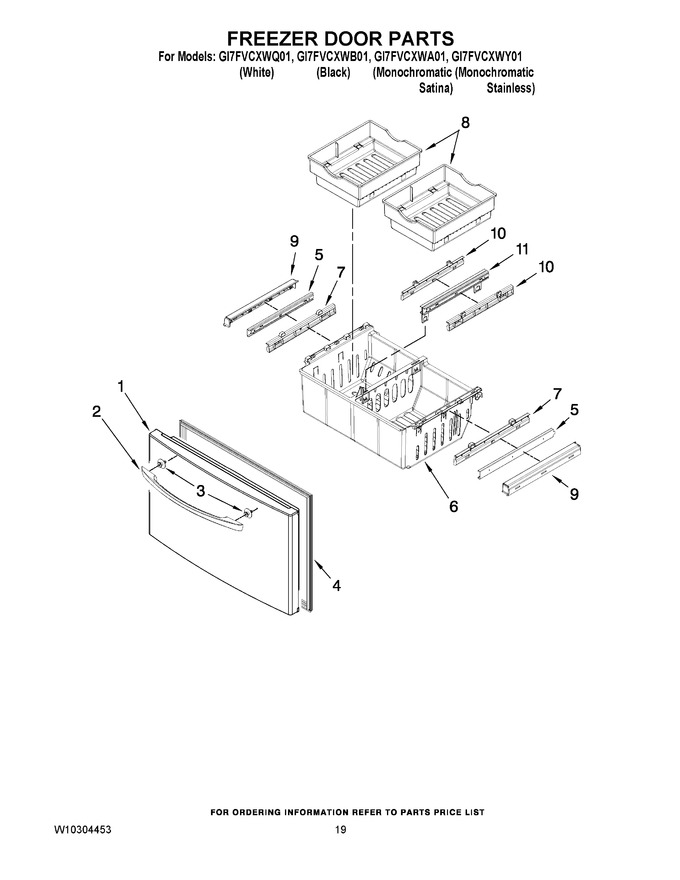

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977835BQ		Freezer Door (black)		Appelez-nous	-
1	12977825LQ		Freezer Door (satina)		Appelez-nous	-
1	12977831SQ		Freezer Door (stainless)		Appelez-nous	-
1	12977823WQ		Freezer Door (white)		Appelez-nous	-
2	W10223025		Handle, Door (stainless)		Appelez-nous	-
2	WPW10223023K		Handle, Door (black)   (Replaces: W10223023)				$ 200.66
2	W10223022		Handle, Door (white)		Appelez-nous	-
3	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 11.91
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 323.60
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 359.84
5	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 313.43
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 98.12
8	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 132.30
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 57.50
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 192.90
10	12925404SP		Adapter, Bin (inner)				$ 45.32
11	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 330.98
