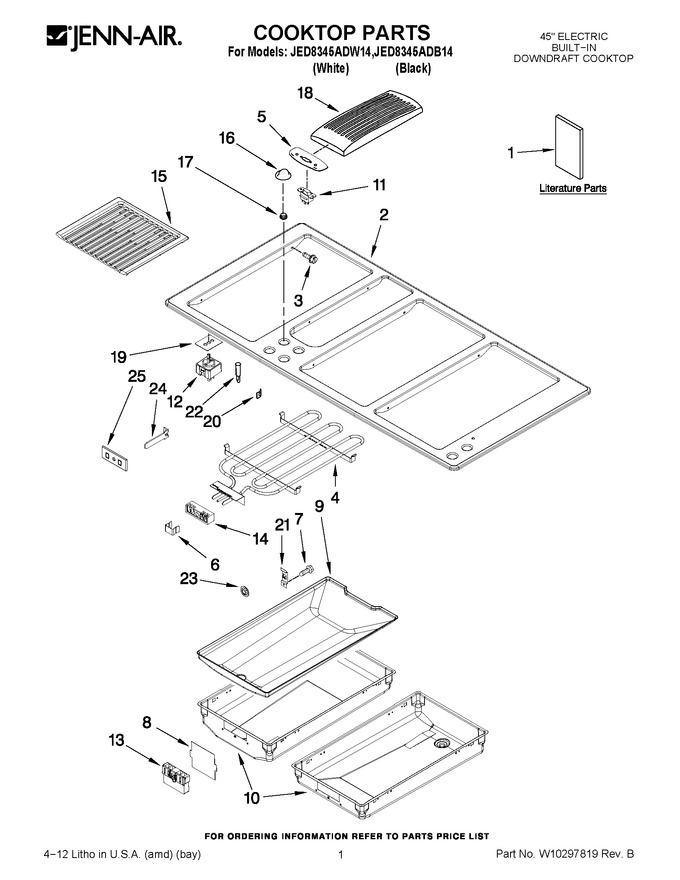

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P421-60 | Installation Instructions |
|
- | |||||
| 1 | 8104P714-60 | Wiring Diagram |
|
- | |||||
| 1 | 8111P529-60 | Use & Care Guide |
|
- | |||||
| 1 | 8101P183-60 | Ducting Inst. |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 2002F164-09 | Top, Main (black) |
|
$ 254.24 | |||||
| 2 | 2002F164-81 | Top, Main (white) |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 7101P428-60) |
|
Immediately | $ 14.72 | ||||
| 4 | WPW10310263 | Element, Surface (Replaces: 7406P297-60) |
|
$ 342.63 | |||||
| 5 | W10341820 | Trim, Control Fan (black) (Replaces: 7744P388-60) |
|
$ 319.76 | |||||
| 5 | W10341820 | Trim, Control Fan (white) (Replaces: 7744P389-60) |
|
$ 319.76 | |||||
| 6 | 7422P002-60 | Clip, Shunt |
|
- | |||||
| 7 | WP489128 | Screw (Replaces: 7101P451-60) |
|
$ 11.40 | |||||
| 8 | 7003P130-60 | Block, Ceramic |
|
$ 29.24 | |||||
| 9 | 4009F087-19 | Pan, Grill Insert |
|
$ 105.43 | |||||
| 10 | 3401F059-19 | Pan, Grilcenter (right) |
|
- | |||||
| 10 | 3401F051-19 | Pan, Grill (center) |
|
$ 107.53 | |||||
| 10 | 3401F050-19 | Pan, Grill (left) |
|
$ 107.69 | |||||
| 11 | W10341820 | Switch, Fan (white) (Replaces: 7403P429-60) |
|
$ 319.76 | |||||
| 11 | W10341820 | Switch, Fan (black) (Replaces: 7403P428-60) |
|
$ 319.76 | |||||
| 12 | W11088181 | Switch, Infinite (Replaces: 7403P405-60) |
|
Immediately | $ 119.38 | ||||
| 13 | WPY702434 | Receptacle (Replaces: 7408P047-60) |
|
Immediately | $ 112.71 | ||||
| 14 | WPY708730 | Block, Terminal (Replaces: 7401P061-60) |
|
$ 102.01 | |||||
| 15 | 7518P118-60 | Grate, Grill |
|
$ 129.60 | |||||
| 16 | WP7737P193-60 | Knob, Control (black) (Replaces: 7737P193-60) |
|
$ 19.85 | |||||
| 16 | W11106384 | Knob, Control (white) (Replaces: 7737P194-60) |
|
$ 73.04 | |||||
| 17 | 7103P164-60 | Palnut |
|
- | |||||
| 18 | 7772P047-60 | Grille, Air (white) |
|
- | |||||
| 18 | 7772P046-60 | Grille, Air (black) |
|
$ 102.11 | |||||
| 19 | 7212P030-60 | Gasket, Switch |
|
- | |||||
| 20 | WP7112P152-60 | Clip,ind.light(2) (Replaces: 7112P152-60) |
|
$ 12.24 | |||||
| 21 | 7112P147-60 | Clip, Ground |
|
- | |||||
| 22 | 7407P149-60 | Ind., Light(2) (white) |
|
$ 5.83 | |||||
| 22 | 74005790 | Ind., Light(2) (black) (Replaces: 7407P146-60) |
|
Immediately | $ 8.59 | ||||
| 23 | Y708862 | Nut (Replaces: 7103P148-60) |
|
$ 15.25 | |||||
| 24 | Y708572 | Spade, Contact (Replaces: 7405P131-60) |
|
Immediately | $ 13.23 | ||||
| 25 | 7003P082-60 | Insulator |
|
- |
