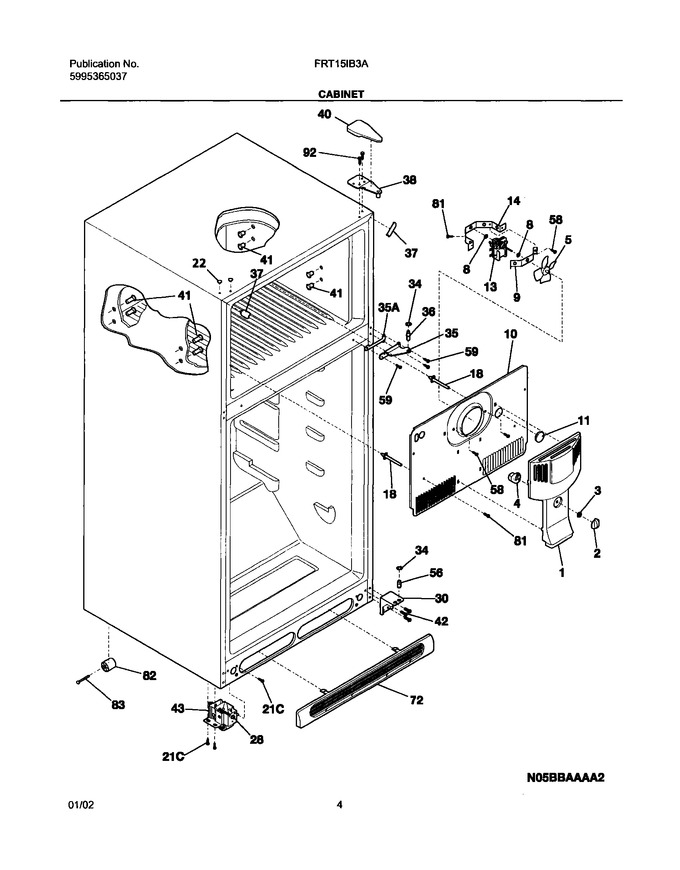

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652301		Cover-fan   (Replaces: 240355401)				$ 124.98
2	240367001		Knob-damper Control			Immediately	$ 64.04
3	5303001028		Nut,push-on		Appelez-nous	-
4	240367401		Damper-fan Cover				$ 41.32
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	240462004		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 50.56
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 19.38
18	240411901		Support-evap Cover,(2)				$ 12.81
22	215774901		Plug-button,bisque ,upr Hinge Holes   (Replaces: 215774919)			Immediately	$ 20.22
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335501)			Immediately	$ 34.81
30	240357104		Bracket-hinge,bisque ,bottom		Appelez-nous	-
34	240311303		Washer,hinge ,nylon ,(2)   (Replaces: 240311301)			Immediately	$ 11.80
35	240357004		Bracket-ctr Hinge,bisque		Appelez-nous	-
36	241708002		Pin-center Hinge   (Replaces: 240516401)				$ 23.63
37	240337604		Trim-cabinet Corner,bisque ,(2)		Appelez-nous	-
38	240356901		Bracket-upper Hinge		Appelez-nous	-
40	240354403		Cover-upper Hinge,bisque				$ 40.95
41	5304509705		Grommet,shelf Mtg ,0.69`` ,rh   (Replaces: 5303001609)				$ 11.12
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 0.75   (Replaces: 240423601)			Immediately	$ 15.75
43	5304499445		Roller Assy, Front - If Fixed Rollers W/ Leveling Screws Order 241559601(rh) And 241559602(lh).   (Replaces: 240335003)			Immediately	$ 34.81
56	240516502		Pin-lower Hinge   (Replaces: 240516501)				$ 80.89
58	5304455651		Screw   (Replaces: 5303001343)				$ 16.01
59	240442704		Screw-no.10-32 X 3/4,bisque		Appelez-nous	-
72	240368302		Grille/kickplate,bisque ,lower Front				$ 90.30
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 39.27
92	241710601		Screw   (Replaces: 5303001479)				$ 14.96
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 15.75
35A	240336802		Spacer-hinge,center   (Replaces: 240336801)			Immediately	$ 20.48
F13	5303918549		Motor-evap Fan   (Replaces: 240369701)			Immediately	$ 73.40
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
NI	5304414035		Paint,touch-up ,bisque				$ 14.96
NI	240385401		Wiring Harness,freezer Section				$ 73.97
NI	240371301		Seal,insulation ,46.15 In. Long ,foam ,coil Cover		Appelez-nous	-
NI	5304500407		Grommet,shelf Mtg ,1.25`` ,lh   (Replaces: 5308009759)			Immediately	$ 7.09
NI	218931001		Clamp-motor Wiring,nylon ,w/adhesive Tape		Appelez-nous	-
