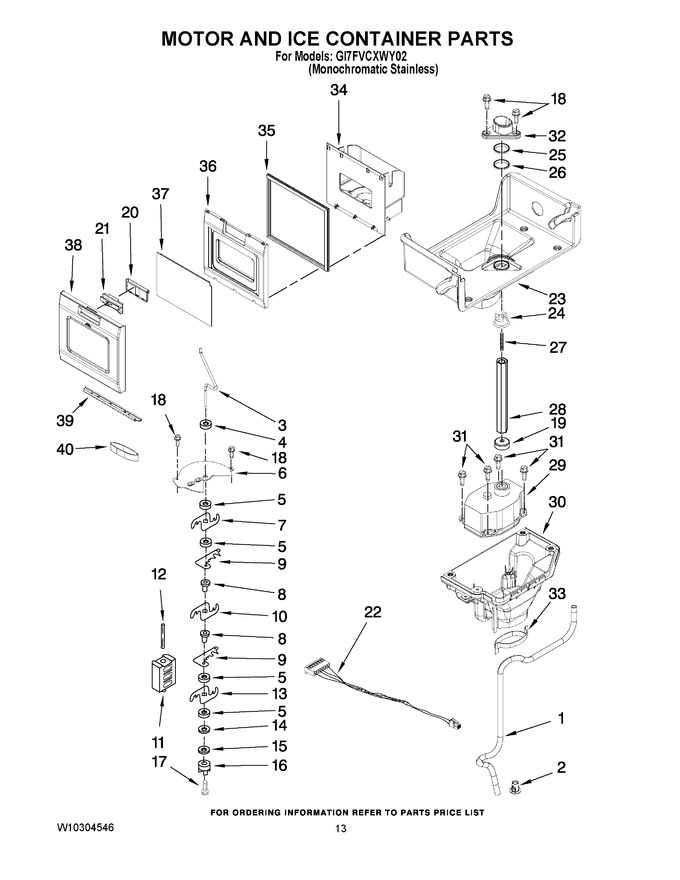

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245518 | Tube, Drain |
|
$ 32.98 | |||||
| 2 | W10562834 | Clip, Drain Tube (Replaces: W10245516) |
|
$ 14.91 | |||||
| 3 | W10178230 | Auger, Crusher |
|
- | |||||
| 4 | 2258220 | Washer, Auger |
|
$ 8.02 | |||||
| 5 | W11032808 | Spacer, Flat (4) (Replaces: W10189658) |
|
$ 10.12 | |||||
| 6 | W10178232 | Cover, Crusher |
|
$ 27.60 | |||||
| 7 | W10278733 | Blade, Rotary |
|
$ 86.67 | |||||
| 8 | W10189661 | Spacer, Step (2) |
|
$ 50.93 | |||||
| 9 | 2257020 | Blade, Fixed |
|
$ 59.91 | |||||
| 10 | W10278732 | Blade, Rotary |
|
$ 86.67 | |||||
| 11 | W10178238 | Blade, Block |
|
$ 10.91 | |||||
| 12 | W10166878 | Roll Pin |
|
$ 12.20 | |||||
| 13 | W10278731 | Blade, Rotary |
|
$ 86.54 | |||||
| 14 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Coupling (Replaces: 2198661) |
|
$ 10.90 | |||||
| 16 | WP2220457 | Coupling (Replaces: 2220457) |
|
Immediately | $ 34.21 | ||||
| 17 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 10.79 | |||||
| 18 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 19 | 2323357 | Grommet, Drive Shaft |
|
$ 13.40 | |||||
| 20 | W10215692 | Cover, Latch |
|
- | |||||
| 21 | W10247077 | Spring, Latch |
|
- | |||||
| 22 | W10291014 | Harness, Dispenser Motor |
|
- | |||||
| 23 | W10276438 | Cover, Mounting Plate |
|
$ 31.03 | |||||
| 24 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 39.09 | ||||
| 25 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.97 | ||||
| 26 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 23.77 | |||||
| 27 | W10852956 | Spring (Replaces: 2198607) |
|
Immediately | $ 20.38 | ||||
| 28 | W10258592 | Shaft, Motor |
|
$ 68.93 | |||||
| 29 | WP2323603 | Motor, Dispenser (Replaces: 2323603) |
|
$ 358.59 | |||||
| 30 | W10245601 | Housing, Auger Motor |
|
- | |||||
| 31 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 32 | W10218551 | Clip, Shaft |
|
- | |||||
| 33 | W10247398 | Gasket, Motor Box |
|
- | |||||
| 34 | W10267558 | Container, Ice |
|
$ 102.89 | |||||
| 35 | W10178224 | Gasket, Ice Container |
|
$ 205.79 | |||||
| 36 | W10213615 | Eps, Ice Container |
|
$ 32.62 | |||||
| 37 | W10218689 | Window, Ice Container |
|
$ 51.54 | |||||
| 38 | W10277106 | Front, Ice Container |
|
- | |||||
| 39 | W10248280 | Hinge, Ice Bucket |
|
- | |||||
| 40 | W10166865 | Gasket, Chute |
|
- | |||||
| 100 | W10277159 | Container, Ice (complete) |
|
- |
