SELECT A DIAGRAM

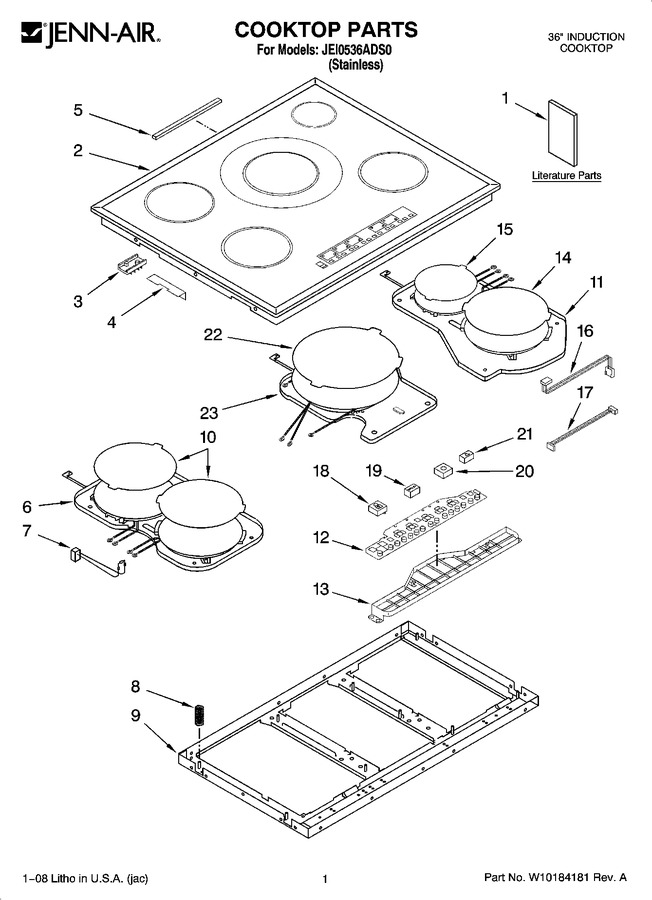

01 - Cooktop Parts


02 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141605		Owners Manual		Appelez-nous	-
1	W10098720		Instruct, Install		Appelez-nous	-
2	W10178155		Cooktop, Glass				$ 1,048.77
3	W10122355		Bracket, Mntg(kit)				$ 40.10
4	W10122356		Bracket, Mntg(kit)				$ 35.50
5	W10122347		Seal				$ 38.20
6	W10122332		Hotplate (180-180)				$ 496.79
7	W10122353		Sensor, Ntc				$ 31.08
8	W10122348		Spring		Appelez-nous	-
9	W10134544		Box, Burner		Appelez-nous	-
10	W10122333		Cover (mica 180)		Appelez-nous	-
11	W10122335		Hotplate (210-150)				$ 511.63
12	W10178154		Display				$ 411.60
13	W10122351		Bracket, Mounting		Appelez-nous	-
14	W10122337		Cover (mica 210)		Appelez-nous	-
15	W10122338		Cover (mica 80)		Appelez-nous	-
16	W10122349		Harness, Wire				$ 45.60
17	W10122354		Harness, Wire		Appelez-nous	-
18	W10122341		Display (lock)		Appelez-nous	-
19	W10122344		Display (clock)		Appelez-nous	-
20	W10122343		Display (timer)		Appelez-nous	-
21	W10122342		Display (power On)		Appelez-nous	-
22	W10122336		Cover (mica 280)		Appelez-nous	-
23	W10122350		Hotplate (280)				$ 425.65

    View Diagram in Separate Window       Print Part List
