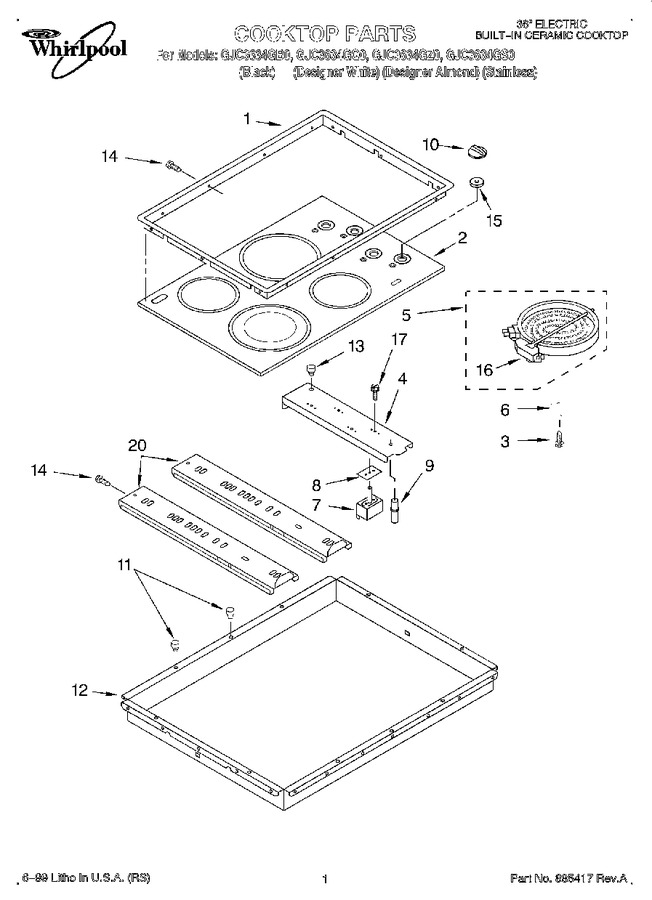

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3190939 | Trim Ring, Cooktop (designer Almond) |
|
- | |||||
| 1 | 3190937 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3190938 | Trim Ring, Cooktop (designer White) |
|
- | |||||
| 1 | 3192232 | Trim Ring, Cooktop (stainless Steel) |
|
- | |||||
| 2 | 3192037 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3192036 | Cooktop, Glass (designer Almond) |
|
- | |||||
| 2 | 3192035 | Cooktop, Glass (designer White) |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 8.01 | |||||
| 4 | 3191310 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 3191984 | Element, Surface (l.r. (1200w)) |
|
- | |||||
| 5 | 3191981 | Element, Surface (r.f. (1500w)) |
|
- | |||||
| 5 | W10823692 | Element, Surface (lf 2400w/1000w (dual)) (Replaces: 3191723) |
|
Immediately | $ 227.59 | ||||
| 5 | W10823693 | Element, Surface (r.r. (1800w)) (Replaces: 3191982) |
|
Immediately | $ 228.74 | ||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 7 | WP486579 | Switch, Infinite (screw (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 7 | WP3191049 | Switch, Infinite (use W/rf & Lr Burners) (Replaces: 3191049) |
|
$ 175.29 | |||||
| 7 | WP3191050 | Switch, Infinite (use W/rr Burner) (Replaces: 3191050) |
|
Immediately | $ 174.68 | ||||
| 7 | 8203534 | Switch, Infinite (use W/lf Burner) (Replaces: 3188516) |
|
Immediately | $ 176.40 | ||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 9 | 3191952 | Light, Indicator |
|
- | |||||
| 10 | WP3196231 | Knob, Control (4) (black) (Replaces: 3196231) |
|
Immediately | $ 22.00 | ||||
| 10 | 3196233 | Knob, Control (4) (designer Almond) |
|
$ 15.63 | |||||
| 10 | 3196232 | Knob, Control (4) (designer White) |
|
$ 16.71 | |||||
| 11 | 9750835 | Bumper, Silicone |
|
- | |||||
| 12 | 3191163 | Box, Burner |
|
- | |||||
| 13 | 3191953 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 15 | 3182435 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3191990 | Switch, Limiter (use W/3191984 L.r. Element) |
|
- | |||||
| 16 | 3191989 | Switch, Limiter (use W/3191981 Rf Element) |
|
- | |||||
| 16 | 3191988 | Switch, Limiter (use W/3191982 R.r. Element) |
|
- | |||||
| 16 | 3191966 | Switch, Limiter (use W/3191723 Lf Dual Element) |
|
- | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.89 | |||||
| 20 | 3191515 | Rail, Element |
|
- | |||||
| 3172515 | Mtg. Hardware Kit |
|
- | ||||||
| 3179589 | Wire, Tie |
|
- | ||||||
| 3184478 | Cleaner |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| LIT3191770 | Use & Care Guide |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| LIT3191771 | Installation Instructions |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| LIT3191773 | Wiring Diagram |
|
- | ||||||
| WA906B | Scraper, Glass (Replaces: 3183488) |
|
Immediately | $ 5.40 | |||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 3191547 | Harness, Conduit |
|
- | ||||||
| 3191568 | Wiring Harness Surface Unit |
|
- |
