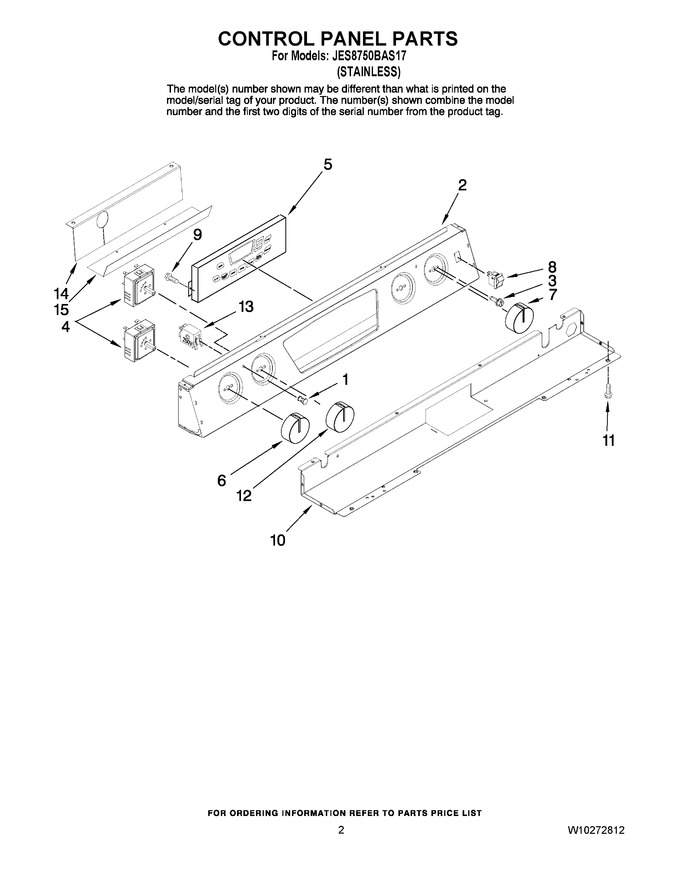

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 13.32 | |||||
| 2 | W10206063 | Panel, Control |
|
- | |||||
| 3 | W11846982 | Screw, Switch (Replaces: 7101P676-60) |
|
$ 11.75 | |||||
| 4 | WP7403P238-60 | Switch, Infinite (6`` (lr/rr)) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 4 | WP74010824 | Switch, Infinite (dual (rf/lf)) (Replaces: 7450P011-60) |
|
Immediately | $ 112.13 | ||||
| 5 | 8507P225-60 | Control |
|
- | |||||
| 6 | WP74011550 | Knob (dual) (Replaces: 7737P394-60) |
|
Immediately | $ 45.65 | ||||
| 7 | WP74011631 | Knob, Triple (Replaces: 7737P391-60) |
|
Immediately | $ 64.81 | ||||
| 8 | 7403P798-60 | Switch, Rocker |
|
- | |||||
| 9 | WP59002061 | Screw, Control (Replaces: 7101P077-60) |
|
$ 8.18 | |||||
| 10 | 3807F731-51 | Support, Control Panel |
|
$ 16.33 | |||||
| 11 | WP90767 | Screw, Support (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 12 | WP74011493 | Knob,6`` (lr/rr) (Replaces: 7737P395-60) |
|
Immediately | $ 46.24 | ||||
| 13 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 14 | 7003P150-60 | Shield, Insulator |
|
- | |||||
| 15 | 7003P152-60 | Shield, Control |
|
- |
