01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts

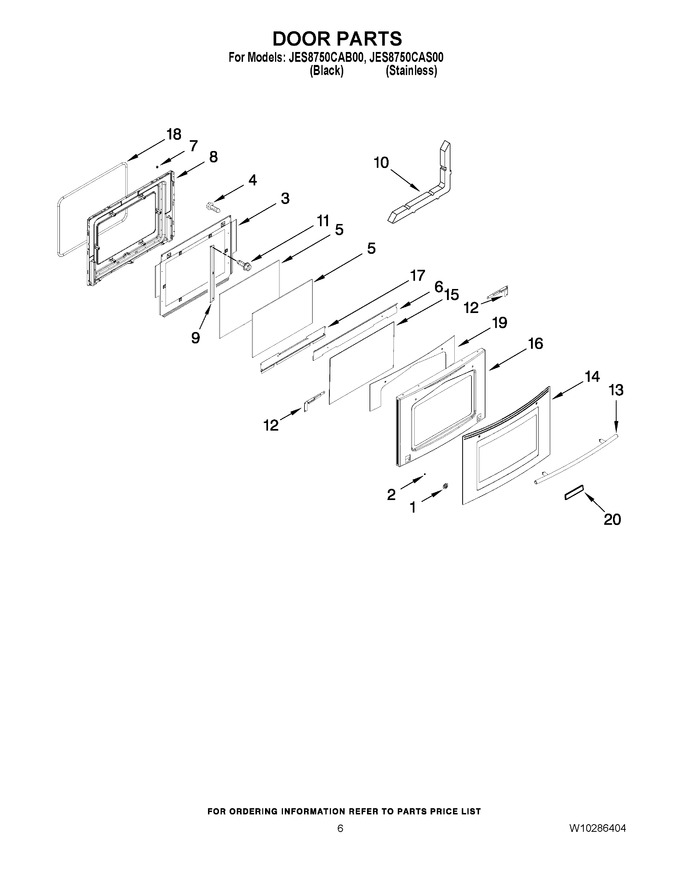

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7109P082-60 | Washer |
|
- | |||||
| 2 | WP3400029 | Nut, 10-32 (Replaces: 7103P176-60) |
|
Immediately | $ 7.76 | ||||
| 3 | 3601F373-51 | Baffle, Oven Door |
|
$ 271.36 | |||||
| 4 | W11347848 | Screw, 8ab X1/2 (Replaces: 7101P376-60) |
|
$ 13.55 | |||||
| 5 | 74003645 | Glass, Inner (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 6 | 3604F418-51 | Shield |
|
$ 77.46 | |||||
| 7 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 11.01 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 12 | 3804F308-51 | Retainer, Glass (left) |
|
- | |||||
| 12 | 3804F307-51 | Retainer, Glass (right) |
|
$ 109.75 | |||||
| 13 | W10223163 | Handle, Door (black) |
|
- | |||||
| 13 | W10223152 | Handle, Door (stainless) |
|
$ 141.55 | |||||
| 14 | WPW10235390 | Glass, Door (stainless) (Replaces: W10235390) |
|
$ 414.72 | |||||
| 14 | WPW10272332 | Glass, Door (black) (Replaces: W10272332) |
|
$ 300.87 | |||||
| 15 | 7902P768-60 | Glass, Coated |
|
- | |||||
| 16 | 3603F075-70 | Frame, Door (black) |
|
$ 187.06 | |||||
| 17 | 3804F317-80 | Retainer,glass Btm |
|
$ 65.61 | |||||
| 18 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 19 | 7002P465-60 | Insulation, Foil |
|
- | |||||
| 20 | WPW10214168 | Nameplate (Replaces: W10190724) |
|
$ 81.86 |
