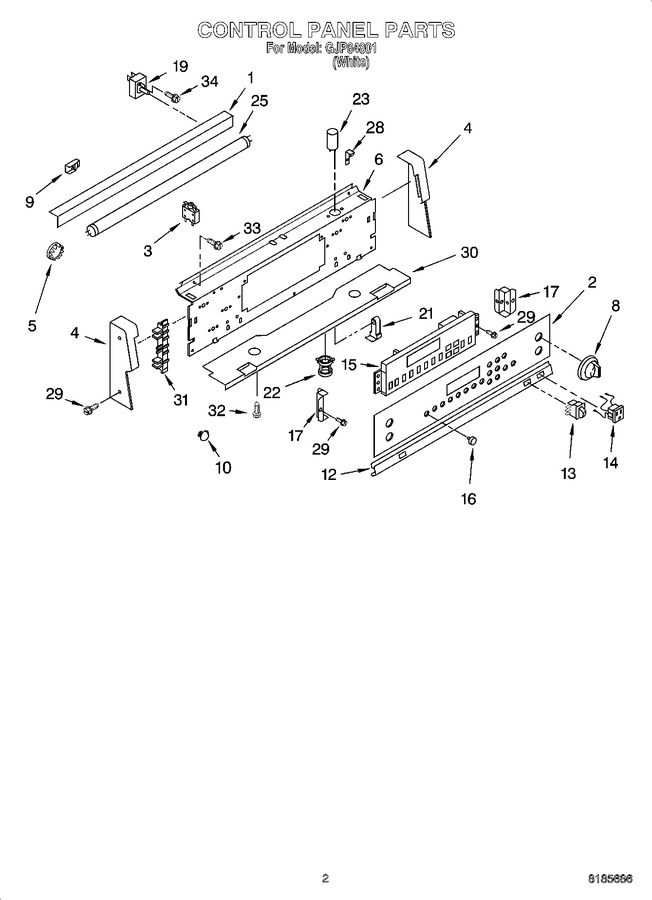

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752431PW		Lamp Cover		Appelez-nous	-
2	9754222		Console-glass (control Panel)		Appelez-nous	-
3	3191072		Breaker, 15amp. (2)		Appelez-nous	-
4	9752423FW		End Cap (right)		Appelez-nous	-
4	9752422FW		End Cap (left)		Appelez-nous	-
5	9780577		Button Plug (8 Mm (2))		Appelez-nous	-
6	3191070		Panel, Control		Appelez-nous	-
8	WP9752405FW		Knobs, Control (4)   (Replaces: 9752405FW)				$ 22.20
9	WP9750343		Lens, Indicator   (Replaces: 9752589)			Immediately	$ 6.00
9	313102		Light, Indicator (2) (burners)				$ 66.48
10	9752854		Spacer		Appelez-nous	-
12	9752443PW		Trim Strip		Appelez-nous	-
13	9754017FW		Switch, Rocker		Appelez-nous	-
14	9751480FW		Outlet, Untimed (2)		Appelez-nous	-
15	9754261		Timer				$ 535.79
16	9781954FW		Knob, Timer (17)				$ 16.39
17	9753304		Bracket (2)		Appelez-nous	-
19	WP8203529		Infinite Switch (dual, (2))   (Replaces: 9753500)			Immediately	$ 163.22
19	WP9750643		Infinite Switch (1400w)   (Replaces: 9750643)			Immediately	$ 145.12
19	9750644		Infinite Switch (1700w)				$ 53.99
21	9782259		Receptacle, Light				$ 33.60
22	9750866		Starter, Holder		Appelez-nous	-
23	9781118		Starter, Light		Appelez-nous	-
25	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 134.94
28	9753017		Clip, Spring (2)		Appelez-nous	-
29	9780265		Screw, 8-16 X 3/8		Appelez-nous	-
30	9752439		Base, Console		Appelez-nous	-
31	9753076FW		Spacer, Timer (2)		Appelez-nous	-
32	WP3400832		Screw, 8-18 X 1/2   (Replaces: 3196168)			Immediately	$ 8.18
33	9780852		Screw, 8-18 X 3/8		Appelez-nous	-
34	9750995		Insulation, Control Panel		Appelez-nous	-
34	WP3400882		Screw, 8-32 X 7/32   (Replaces: 3400816)			Immediately	$ 7.55
