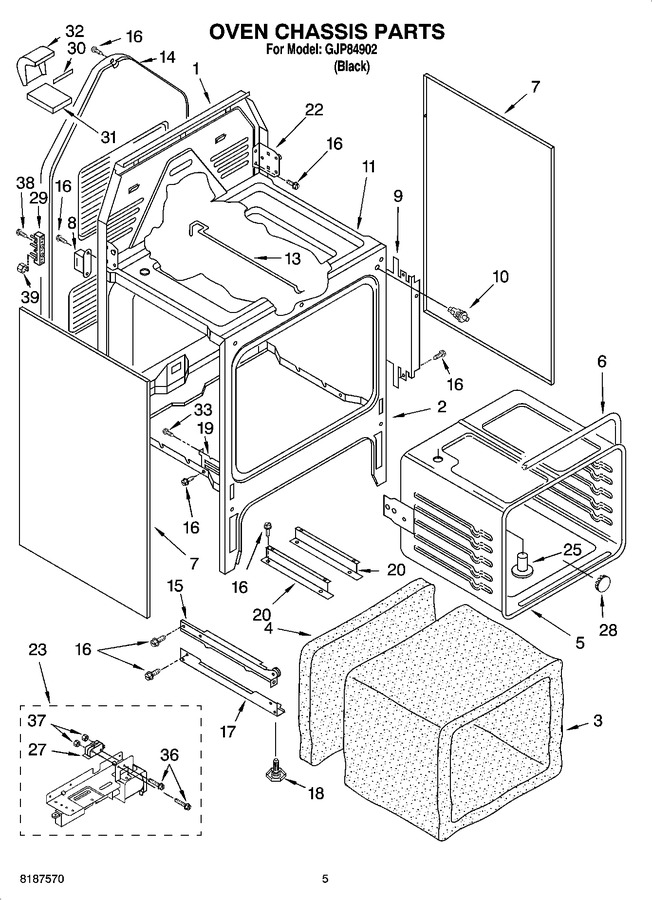

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9754003		Insulation, Wrap		Appelez-nous	-
4	9754011		Insulation, Rear		Appelez-nous	-
5	9754263GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PB		Oven, Side Panel		Appelez-nous	-
8	9780881		Ballast		Appelez-nous	-
9	9780664		Shield, Insulation		Appelez-nous	-
10	9781580		Door Switch (oven Light)				$ 65.75
11	9750478		Burner Box		Appelez-nous	-
13	9750523		Rod, Lock		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
16	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 8.24
19	9782005		Receiver, Hinge (r Or L)		Appelez-nous	-
20	9781904		Support Rail, Pan (2)		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
23	9782257		Oven Lock Assembly		Appelez-nous	-
25	9753091		Vent Tube		Appelez-nous	-
27	9782117		Switch, Interlock		Appelez-nous	-
28	9780578		Plug, Button		Appelez-nous	-
29	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
30	9750767		Gasket, Vent		Appelez-nous	-
31	9750393		Cover, Vent		Appelez-nous	-
32	9750394		Back, Vent		Appelez-nous	-
33	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
36	9750887		Screw, 4-40 X 1		Appelez-nous	-
37	9750888		Nut		Appelez-nous	-
38	98884		Screw, 10-16 X 1		Appelez-nous	-
39	9754253		Insulation Burner Box Rear		Appelez-nous	-
39	WP112432		Nut   (Replaces: 112432)				$ 8.63
