Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74011623 Control Panel/switch Asy (bsq) 10 Appelez-nous -
2 WP74008940 Switch, Infinite (flex)   (Replaces: 74008940) 10 In-Stock Immediately $ 139.49

3 WP7403P238-60 Switch, Infinite (sml Element)   (Replaces: 7403P238-60) 10 In-Stock Immediately $ 64.20

4 74007845 Support, Element 10 Appelez-nous -
5 WP74004153 Light, Indicator   (Replaces: 74004153) 10 In-Stock Immediately $ 8.91

6 WP22001948 Lens, Indicator Light   (Replaces: 22001948) 10 Special Order $ 13.32

7 74011761 Support, Control Panel 10 Appelez-nous -
8 WP74011580 Knob (flex)   (Replaces: 74011580) 10 In-Stock Immediately $ 34.00

9 74011637 Glass Top Asy (bsq) 10 Appelez-nous -
10 WP59002061 Screw (6abx3/8-sn)   (Replaces: 74004288) 10 Special Order $ 8.18

10 WP8507P226-60 Control   (Replaces: 74011719) 10 In-Stock Immediately $ 409.41

11 WP74011579 Knob (custom Control)   (Replaces: 74011579) 10 In-Stock Immediately $ 35.62

12 W10823711 Element (1200w)   (Replaces: 74008573) 10 In-Stock Immediately $ 204.39

13 W10823722 Element, Dual (3000)   (Replaces: 74011575) 10 In-Stock Immediately $ 429.91

13 W10823724 Element- D   (Replaces: 74011986) 14 In-Stock Immediately $ 388.79

14 WP74011493 Knob   (Replaces: 74011493) 10 In-Stock Immediately $ 46.24

15 WP7101P498-60 Screw (6abx.25-zn)   (Replaces: 74003357) 10 Special Order $ 7.86

16 WP74010824 Switch, Element (lrg)   (Replaces: 74010824) 10 In-Stock Immediately $ 112.13

17 W10823718 Element, Triple   (Replaces: 74010158) 10 In-Stock Immediately $ 405.10

18 WPW10185286 Control, Burner (custom)   (Replaces: W10185286) 18 In-Stock Immediately $ 214.36

18 WPW10185286 Control, Burner (custom)   (Replaces: 74011596) 10 In-Stock Immediately $ 214.36

19 WP74011631 Knob   (Replaces: 74011631) 10 In-Stock Immediately $ 64.81

20 74011620 Element (warming Zone) 10 Special Order $ 174.39

21 74008765 Switch, Rocker (bsq) 10 Special Order $ 92.75

22 74011633 Trim, Vent (bsq) 10 Appelez-nous -
23 74005759 Tube, Vent (upr) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

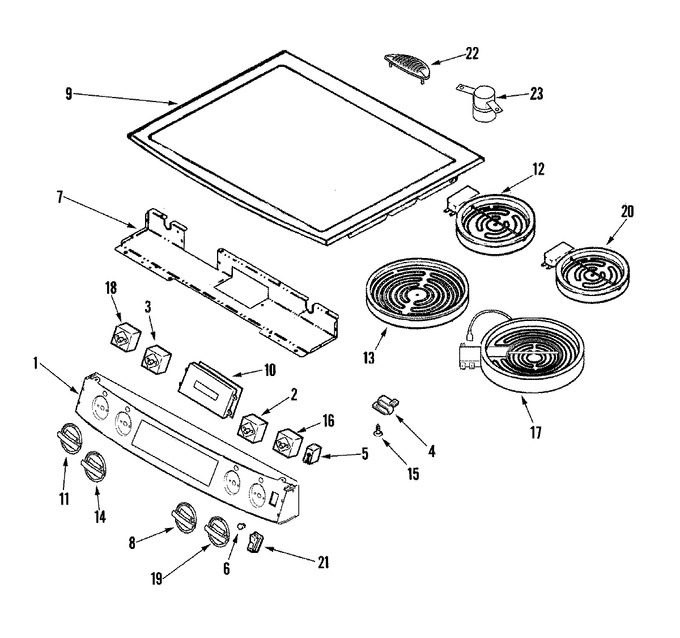

Diagram for JES8850BAQ
