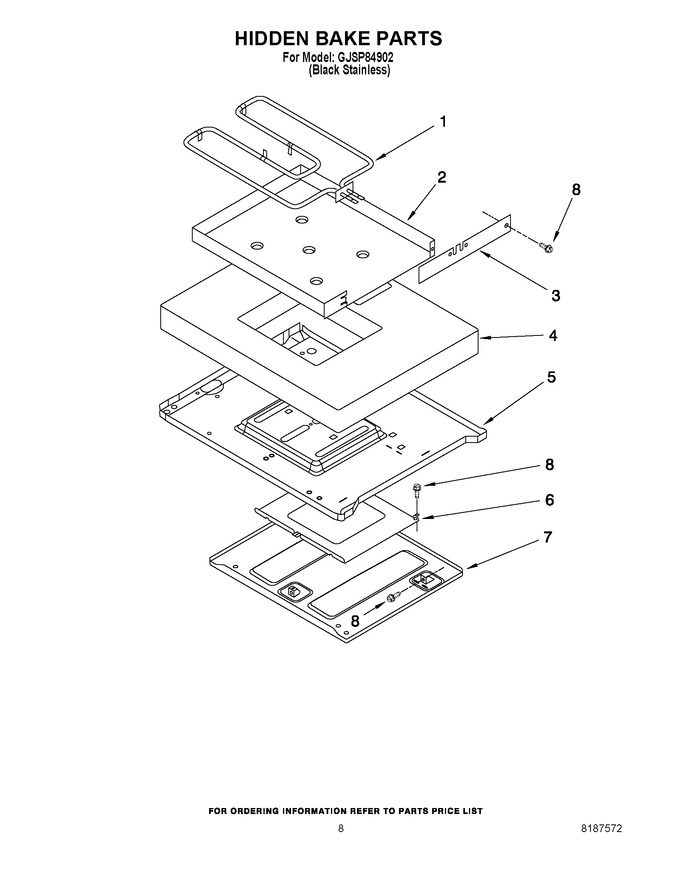

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | UB494 | Element, Bake (Replaces: 9752294) |
|
Immediately | $ 51.99 | ||||
| 2 | 9782048 | Pan, Hidden Bake |
|
- | |||||
| 3 | 9782049 | Cover, Hidden Bake |
|
- | |||||
| 4 | 9754005 | Insulation |
|
- | |||||
| 5 | 9752735 | Retainer, Insulation |
|
- | |||||
| 6 | 9782050 | Plate, Reflector |
|
- | |||||
| 7 | 9782051 | Shield |
|
- | |||||
| 8 | 9780265 | Screw, 10-16 X 3/8 |
|
- |
