SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

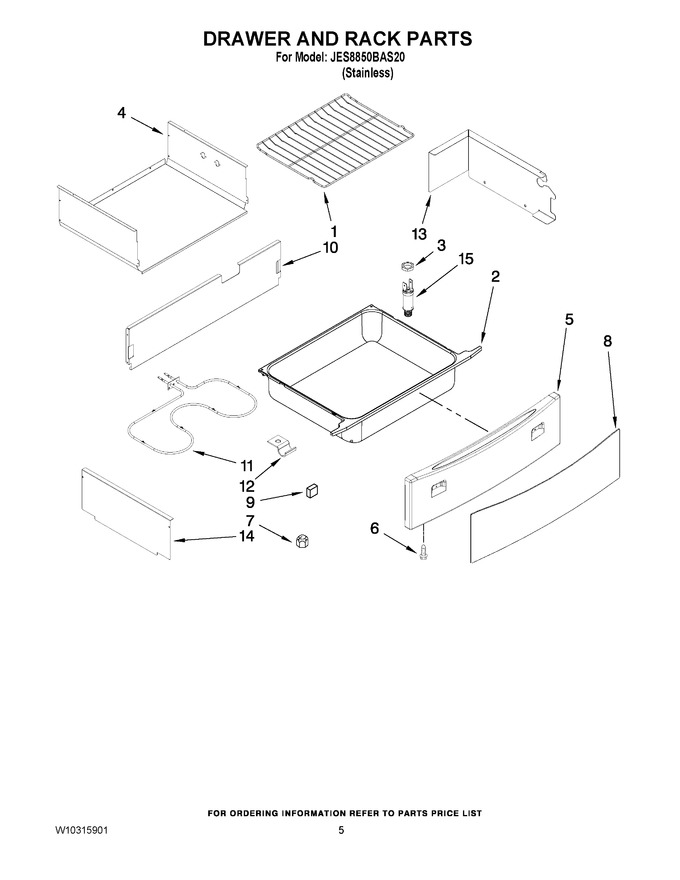

04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7801P173-60		Rack, Oven				$ 55.72
2	3405W043-19		Drawer, Warming				$ 177.18
3	WP7101P072-60		Screw (10-24)   (Replaces: 7101P072-60)				$ 8.06
4	3801F887-51		Bracket, Drawer				$ 8.32
5	WP2416F086-70		Panel, Drawer (w/handle) (black)   (Replaces: 2416F086-70)				$ 239.49
6	W11347848		Screw, Panel   (Replaces: 7101P376-60)				$ 14.23
7	WPW10131078		Nut, Lock (10-24)   (Replaces: 7103P139-60)				$ 4.65
8	WPW10297248		Overlay, Drawer (stainless)   (Replaces: W10184467)				$ 269.39
9	8010P152-60		Spacer, Rubber		Appelez-nous	-
10	4002F340-45		Back, Warming Drawer		Appelez-nous	-
11	7406P294-60		Element, Warmer		Appelez-nous	-
12	7112P153-60		Clip, Mounting (4) (warmer Element)		Appelez-nous	-
13	3604F434-51		Shield, Warm Drawer Back		Appelez-nous	-
14	3604F414-51		Shield, Warm Drawer Side				$ 32.80
15	7408P086-60		Receptacle,				$ 33.43
16	7103P177-60		Nut		Appelez-nous	-
17	2206F087-45		Body, Warm Drawer				$ 78.16

    View Diagram in Separate Window       Print Part List
