01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

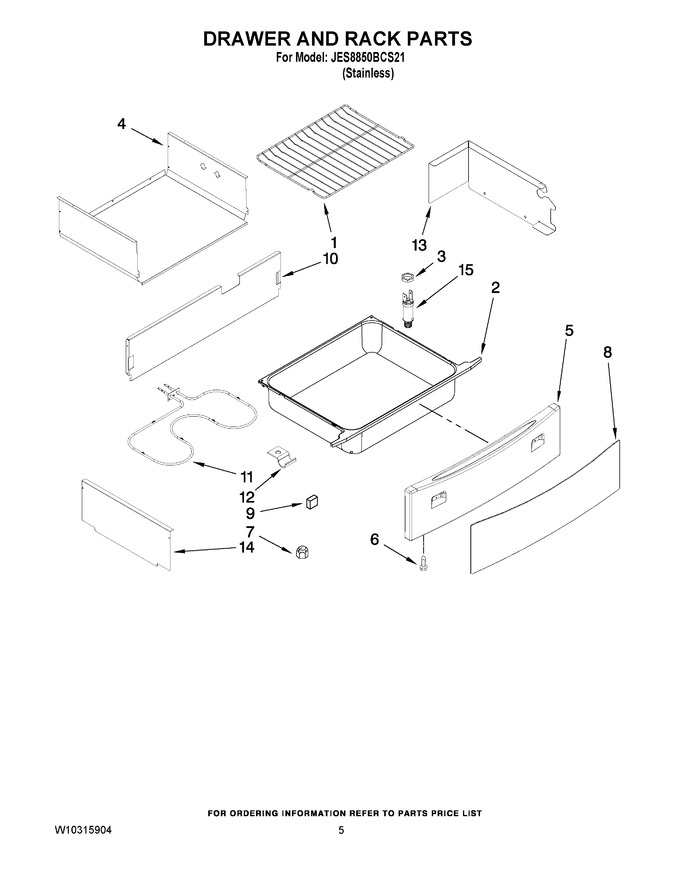

04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7801P173-60 | Rack, Oven |
|
$ 55.72 | |||||
| 2 | 3405W043-19 | Drawer, Warming |
|
$ 177.18 | |||||
| 3 | 7103P177-60 | Nut |
|
- | |||||
| 4 | 2206F087-45 | Body, Warm Drawer |
|
$ 78.16 | |||||
| 5 | WP2416F086-70 | Panel, Drawer (w/handle) (black) (Replaces: 2416F086-70) |
|
$ 239.49 | |||||
| 6 | W11347848 | Screw, Panel (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 7 | WPW10131078 | Nut, Lock (10-24) (Replaces: 7103P139-60) |
|
$ 4.65 | |||||
| 8 | WPW10297248 | Overlay, Drawer (stainless) (Replaces: W10184467) |
|
$ 269.39 | |||||
| 9 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 10 | 4002F340-45 | Back, Warming Drawer |
|
- | |||||
| 11 | 7406P294-60 | Element, Warmer |
|
- | |||||
| 12 | 7112P153-60 | Clip, Mounting (4) (warmer Element) |
|
- | |||||
| 13 | 3604F434-51 | Shield, Warm Drawer Back |
|
- | |||||
| 14 | 3604F414-51 | Shield, Warm Drawer Side |
|
$ 32.80 | |||||
| 15 | 7408P086-60 | Receptacle, |
|
$ 33.43 |
