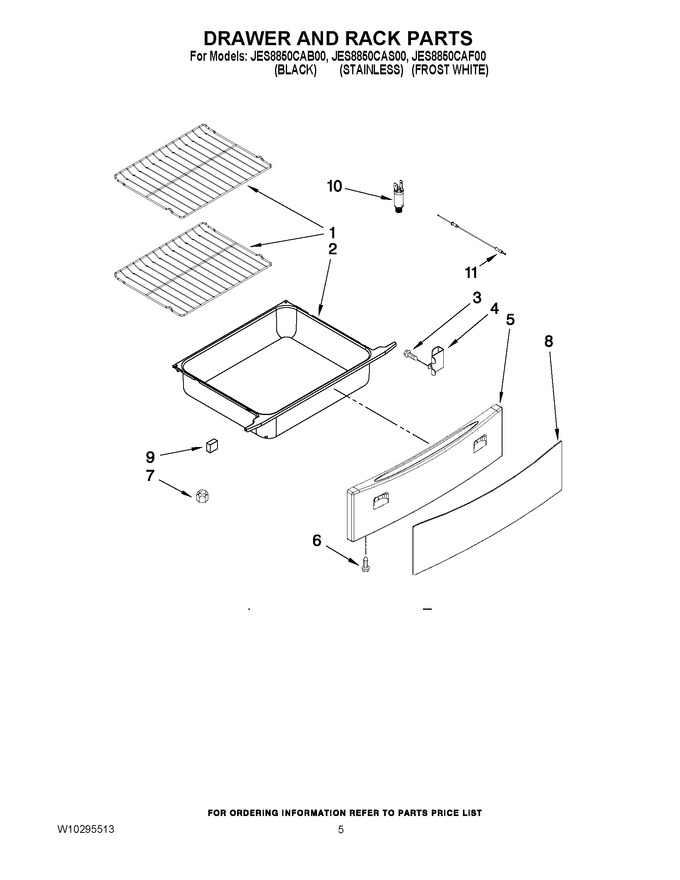

04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7801P173-60		Rack, Oven				$ 55.72
2	3405W043-19		Drawer, Storage				$ 177.18
3	WP7101P072-60		Screw (10-24)   (Replaces: 7101P072-60)				$ 7.52
4	3801F887-51		Bracket, Drawer				$ 8.32
5	2416F086-71		Panel, Drawer (white)				$ 126.90
5	WP2416F086-70		Panel, Drawer (black)   (Replaces: 2416F086-70)				$ 228.09
6	W11347848		Screw, Panel   (Replaces: 7101P376-60)				$ 13.55
7	WPW10131078		Nut, Lock (10-24)   (Replaces: 7103P139-60)				$ 4.44
8	7922P058-60		Glass, Drawer (white)				$ 86.39
8	WPW10297248		Glass, Drawer (stainless)   (Replaces: W10184467)				$ 256.56
8	7922P057-60		Glass, Drawer (black)		Appelez-nous	-
9	8010P152-60		Spacer, Rubber		Appelez-nous	-
10	7408P086-60		Receptacle, Probe				$ 33.43
11	WP7430P038-60		Probe, Meat   (Replaces: 7430P038-60)				$ 143.67
