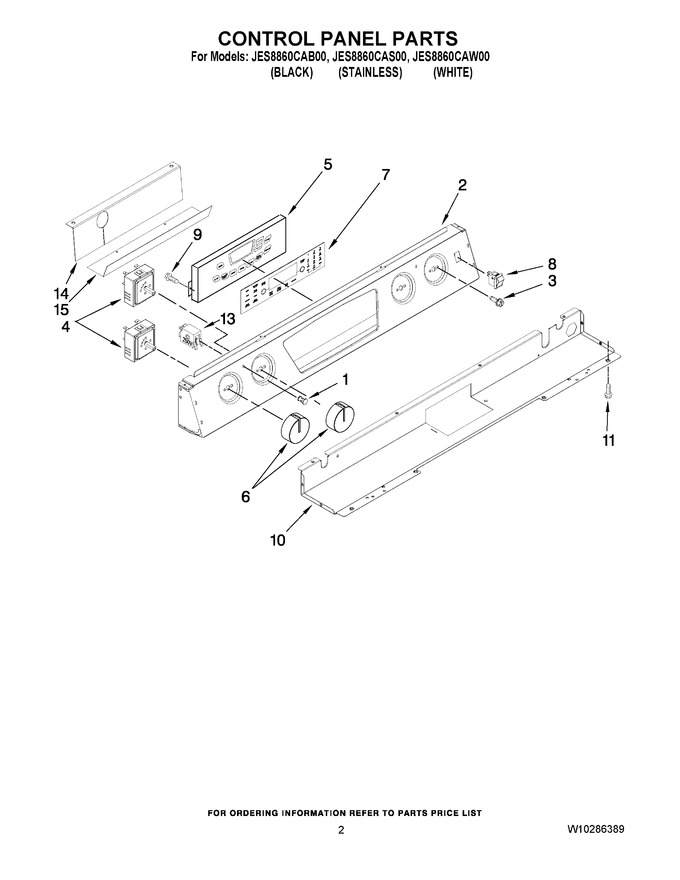

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 12.69 | |||||
| 2 | W10233741 | Panel, Control (black) |
|
- | |||||
| 2 | W10162888 | Panel, Control (stainless) |
|
- | |||||
| 2 | W10233742 | Panel, Control (white) |
|
- | |||||
| 3 | W11846982 | Screw, Switch (Replaces: 7101P676-60) |
|
- | |||||
| 4 | WP7403P238-60 | Switch, Infinite (6`` (lr/rr)) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 4 | WP74010824 | Switch, Infinite (dual (rf/lf)) (Replaces: 7450P011-60) |
|
Immediately | $ 112.13 | ||||
| 5 | WP8507P226-60 | Control (Replaces: 8507P226-60) |
|
Immediately | $ 409.41 | ||||
| 6 | W10213942 | Knob, (4) (metal) |
|
$ 27.81 | |||||
| 7 | W10223069 | Switch, Membrane (stainless) |
|
$ 201.73 | |||||
| 7 | W10223128 | Switch, Membrane (white) |
|
- | |||||
| 7 | W10223127 | Switch, Membrane (black) |
|
- | |||||
| 8 | 7403P798-60 | Switch, Rocker (black) |
|
- | |||||
| 8 | 74008717 | Switch, Rocker (white) (Replaces: 7403P799-60) |
|
$ 80.76 | |||||
| 9 | WP59002061 | Screw, Control (Replaces: 7101P077-60) |
|
$ 7.75 | |||||
| 10 | 3807F731-51 | Support, Control Panel |
|
$ 16.33 | |||||
| 11 | WP90767 | Screw, Support (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 13 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 14 | 7003P150-60 | Shield, Insulator |
|
- | |||||
| 15 | 7003P152-60 | Shield, Control |
|
- |
